Not Recommended for New Design and Discontinued

Information on products listed as not recommended for new design (NRND) or discontinued by TDK-Lambda Americas.

CSS Series - 40W to 280W -

• 360W Convection rating
• High Efficiency
• IEC60601-1 or IEC60950-1 certifications
• ORing FET and Current Share
• Dual input fuses

SCS Series - 120W - Single Output

• Low Profile
• Convection cooled
• Wide Range AC Input with PFC
• Global Safety Agency Compliance

KPSA Series - 5W to 15W - Single Output

• Small size and lightweight
• PC board mountable
• Low Cost
• UL Class II Approved
• Wide input range
• No external components needed

iQE Series - 132W to 204W - Single Output

• Standard Quarter Brick Footprint
• 18-60 Vdc, 36-75 Vdc Inputs
• 5, 12, 15 Vdc Outputs
• 1500 Vdc Isolation
• -40 to 125 °C Operating Temperature
• > 90% Efficiency

iAF Series - 72.6W to 110W - Single Output

• DOSA Compatible Footprint
• 2.4-5.5 Vdc and 4.5-14 Vdc Inputs
• 0.6-3.63 Vdc, 0.7-5.5 Vdc Outputs
• Non-Isolated
• Excellent Transient Response
• LGA or EPC format
• No external loop tuning components needed

iSA Series - 36W to 82.5W - Single Output

• 1/16th Brick Footprint
• 36-75 Vdc Input
• 1.2V 30A, 12V 6.5A Nominal Outputs
• 1500 Vdc Isolation
• Constant Switching Frequency

iEA Series - 48W to 78W - Single Output

• Standard Eighth Brick Footprint
• 36-75 Vdc Input
• 5, 12, 15, 18 and 28 Vdc Outputs
• 1500 Vdc Isolation
• -40 to 125 °C Operating Temperature
• Constant Switching Frequency
• Constant Switching Frequency

PXE Series - 20W to 30W - Single Output / Multiple Output

• Industry Standard 2" x 1.6" Footprint
• 9-18, 9-36, 18-36, 18-75, 36-75 Vdc Inputs
• 3.3, 5, 12, 15, ±5, ±12, ±15 Vdc Outputs
• 1600 Vdc Isolation
• -40 to 100 °C Case Temperature
• Six-sided Shielding
• EN61000-4 Immunity

PXA Series - 11.6W to 15.6W - Single Output

• Industry Standard 1" x 1" Footprint
• 9-36 Vdc, 18-36 Vdc, 18-75 Vdc Inputs
• 3.3, 5, 12, 15 Vdc Outputs
• 2250 Vdc Isolation
• -40 to 85 °C Ambient Temperature
• Through Hole or Surface Mount Versions
• EN61000-4 Immunity

PXB Series - 15W - Single Output / Multiple Output

• Industry Standard 1" x 1" Footprint
• 9-18, 9-36, 18-36, 18-75, 36-75 Vdc Inputs
• 3.3, 5, 12, 15, ±5, ±12, ±15 Vdc Outputs
• 1600 Vdc Isolation
• -40 to 100 °C Case Temperature
• Six-sided Shielding
• EN61000-4 Immunity

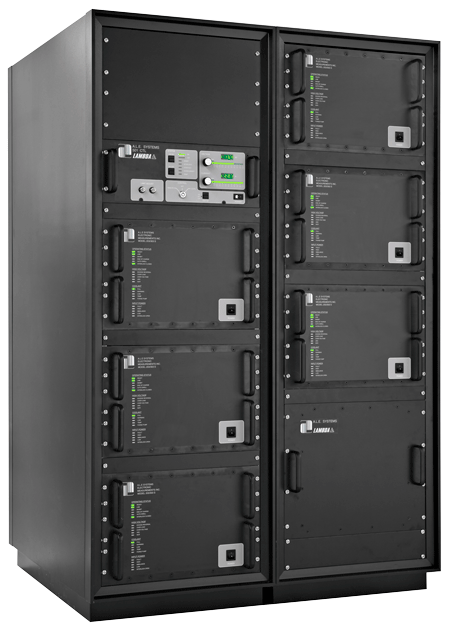

ALE 203 Series - 20,000W to 30,000W - Single Output

• Compact (7U) water-cooled rack mount design
• 20kJ/sec average, 25kJ/sec peak output
• 208VAC, 400VAC, or 480VAC 3phase input
• Simple parallel operation
• Full remote control interface
• Programmable from 0-full voltage
• Models from 0-1kV to 0-50kV

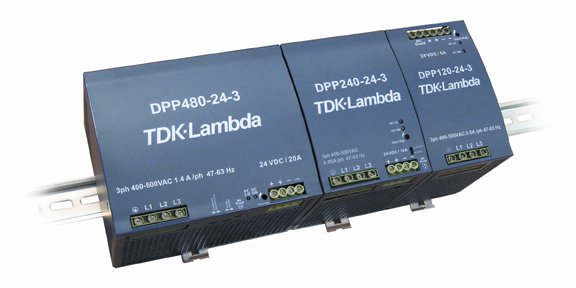

DPP Series - 15W to 960W - Single Output

• Low Cost
• UL 508 Listed
• Convection Cooled
• Conducted and Radiated EMI, Class B
• Input Transient Protection, IEC61000-4
• Conforms to EN61000-3-2 (PFC)
• Three year warranty

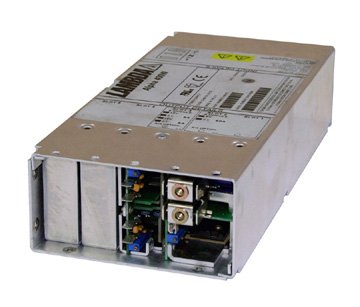

ALPHA 400/600 Series (CA) - 300W to 600W - Single Output / Multiple Output

• 1 to 14 outputs
• Standard or configurable
• No Minimum Load
• Rapid Connection
• Wide Range Output

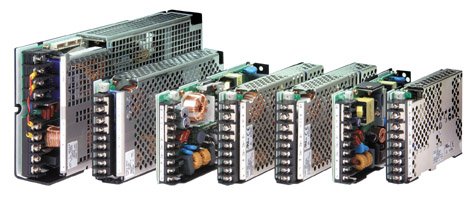

RTW Series - 41W to 312W - Single Output

• Ultra Low Profile
• Convection cooled
• Universal Input (85 - 265VAC)
• High Efficiency
• SEMI F47 Compliant (high line AC)
• Five year warranty

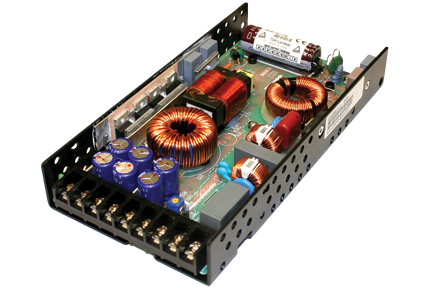

CUS250LD Series - 165W to 252W - Single Output

• High Efficiency, up to 90%
• 1.18" high
• Wide Range AC Input
• Convection Cooled
• Coated PCB as standard
• Three year warranty

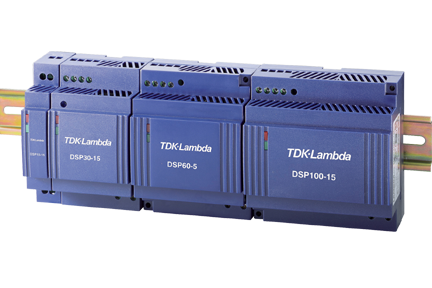

DSP Series - 7.5W to 100W - Single Output

• Low Profile for Building Automation
• 5V to 24V Outputs
• Wide Range AC Input
• -25°C to +71°C Operation
• Convection Cooled
• UL 1310 Class 2 Compliant
• Class II Double Insulation

JWT Series - 75W to 100W - Multiple Output

• Triple Output
• Universal Input
• Remote On/Off Signal
• PFC EN61000-3-2 Compliant

ZP Series - 14W to 60W - Multiple Output

• Single and Multiple Outputs
• Wide Range AC Input
• Low Profile, Industry Standard Footprint
• Global Safety Agency Compliance

KM Series - 15W to 40W - Single Output / Multiple Output

• Single, Dual or Triple Output
• Medical Safety Cert (4kVAC In-Out)
• Class II (No ground needed)
• Wide Range Input
• Small size and lightweight

KWD Series - 5W to 15W - Multiple Output

• Small size and lightweight
• PC board mountable
• -10 to +70°C Continuous Operation
• 85 - 265VAC Wide Range Input
• Safety Agency Approvals
• Convection cooled
• Low Noise Conducted EMI Class B

PAF Series - 264W to 702W - Single Output

• Standard Full Brick Footprint
• 18-36 Vdc, 36-76 Vdc, 200-400 Vdc Inputs
• 3.3, 5, 12, 24, 28, 48 Vdc Outputs
• 1500 Vdc, 3000 Vac Isolation
• -40 to 100 °C Baseplate Temperature
• Opto Isolated Remote On / Off

PAH Series - 38.6W to 451W - Single Output

• Standard Half Brick Footprint
• 18-36 Vdc, 36-76 Vdc Inputs
• 12V 29A, 48V 9.4A Nominal Outputs
• 1500 Vdc Isolation
• Through Hole Mounting
• Constant Switching Frequency

IQB Series - 25W to 150W - Single Output

• Standard Quarter Brick Footprint
• 18-36, 36-75VDC Inputs
• High efficiency, greater than 90%
• Through Hole Mounting
• 1500VDC Basic Isolation

PAE Series - 36W to 100W - Single Output

• Standard Eighth Brick Footprint
• 36-76 Vdc Input
• 1.8, 2.5, 3.3, 5 Vdc Outputs
• 1500 Vdc Isolation
• -40 to 85 °C Operating Ambient Temperature
• 8.5mm height profile

iAC Series - 80W - Single Output

• Standard Industry Footprint (DOSA)
• 3.0-5.5 Vdc, 6.0-14.0 Vdc Input
• 0.8-5.0V Nominal Outputs
• Surface Mount
• Low 8.5mm Profile

IAD Series Single Output

• Standard SIP Footprint (DOSA)
• 6.0-14 Vdc Input
• 0.5-5.5V, 16A Output
• Through Hole Mounting
• High Efficiency (up to 94%)
• Constant Switching Frequency
• Starts with pre-biased output

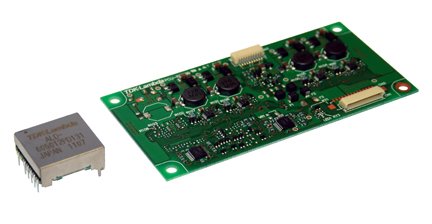

ALD Series - 38W to 44W - Single Output / Multiple Output

• One to Six Strings
• 12VDC Input
• Analog or Resistive Dimming
• Low Profile

IBC Series - 6W to 35W - Single Output

• Standard Industry Footprint (DOSA)
• 3, 5 and 12 V Inputs
• Surface Mountable
• High Efficiency

IBD Series - 5.6W to 35W - Single Output

• Standard SIP Footprint (DOSA)
• 6.0-14 Vdc Input
• 0.8-5.5V Outputs
• Through Hole Mounting
• High operating efficiency, up to 92%
• Constant Switching Frequency
• Starts with pre-biased output

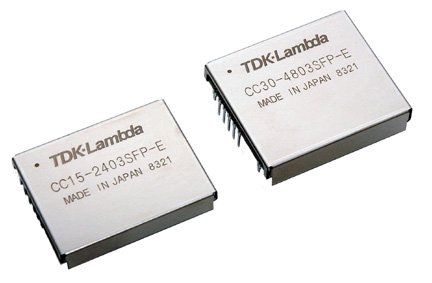

CC-P-E Series - 15W to 30W - Single Output

• Compact Footprint / Low Profile
• 18-36 Vdc Inputs
• 3.3, 5, 12, 15 Vdc Outputs
• Isolation: 1 kVdc (Case); 1.5 kVdc (Uncased)
• -40 to 85 °C Operating Temperature
• Parallel Operation

EMHP Series - 20,000W to 90,000W - Single Output

• CC/CV - automatic crossover
• Forced air cooling
• Built-in RFI protection
• Lifting eye-bolt provisions on top
• Contactor on/off interlock control
• Meters and mode indicator lights
• Wide variety of output ratings

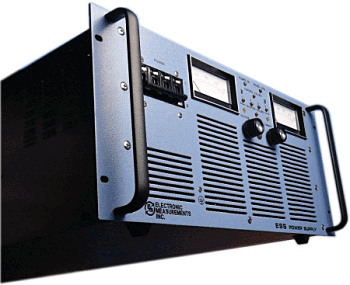

ESS Series - 7500W to 15,000W - Single Output

• Front Panel Adjustable OVP protects load
• Pulse-by-Pulse Current Limit for fast recovery
• Parallel or Series Operation
• Ten Turn V/I Potentiometers standard
• Power Factor 0.9, Efficiency 85%
• Failsafe Soft Start
• Five year warranty

TX Series - 3750W to 7500W - Single Output

• 2U High
• Up to 22,500W in 19" rack
• Hotswap Capable
• High Efficiency

TH Series - 1200W to 2500W - Single Output

• 1U High
• Up to 10,000W in 19" rack
• Hotswap Capable
• High Efficiency

TL Series - 1000W to 2500W - Single Output

• 2U High
• Up to 12,500W in 19" rack
• Hotswap Capable
• >90% Efficiency
• Full power at 65°C ambient
• Full array of signals

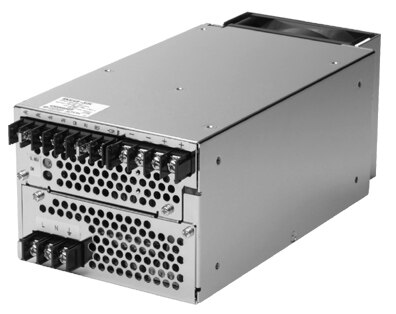

RKE Series - 1200W to 1536W - Single Output

• Five year warranty
• Full array of signals

PF-A Series - 504W to 1512W - Single Output

• Low Profile (0.5")
• 0.95 Power Factor
• EN61000-3-2 Compliant
• Parallel Operation

JWS Series - 33W to 648W - Single Output

• OVP and OCP Fitted as Standard
• Meets EN60950, UL1950, CSA950
• Universal Input
• Power Factor Correction
• Five year warranty

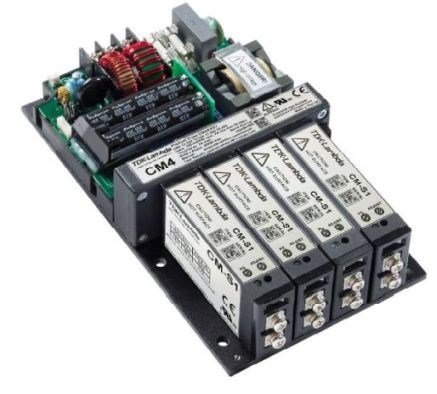

CM4 Series - 600W - Single Output / Multiple Output

• 1 to 4 programmable outputs
• Conduction cooled
• Wide output adjustment
• Compact 4" x 7" footprint
• MIL-STD-461F, -704F Immunity
• 5 year warranty

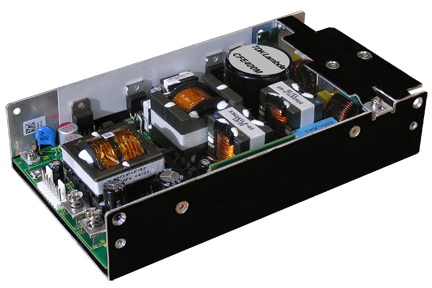

CFE Series - 300W to 400W - Single Output

• Medical & ITE Safety Certifications (BF rated)
• 94% Efficient
• 0.5W Standby Power
• Meets ErP Stage 2
• 450W Peak Loading (10s)
• Suitable for 1U applications
• Five year warranty

ZWX Series - 90W to 300W - Multiple Output

• 90 - 150W convection cooled ratings
• 1U High
• Power factor corrected
• Peak power ratings
• No minimum loading required

DLP Series - 75W to 240W - Single Output

• Low Cost
• UL 508 Listed
• Convection Cooled
• Conducted and Radiated EMI
• Input Transient Protection, IEC61000-4
• Conforms to EN61000-3-2 (PFC)
• Three year warranty

ZWD-PAF Series - 100W to 225W - Multiple Output

• Universal Input (85 - 265VAC)
• Power Factor Corrected
• 200% Peak Power capability on 24V o/p
• Individual output adjustment
• Two year warranty

NN Series - 15W to 90W - Single Output / Multiple Output

• Single and Dual Outputs
• Excellent Line and Load Regulation
• Front Panel Voltage Taps
• Thermal Protection
• Two year warranty

MTW Series - 15W to 60W - Multiple Output

• Compact, Slim, Lightweight
• Low Cost Design
• Peak Load Capable
• Output 1 isolated from Outputs 2 & 3
• Three year warranty

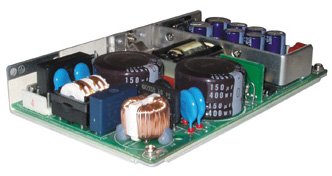

LWT-H Series - 17W to 50W - Multiple Output

• Triple Output
• 26mm height
• Outputs 2 and 3 isolated from output 1
• Universal input (85 - 265VAC)
• Low profile
• Wattbox design

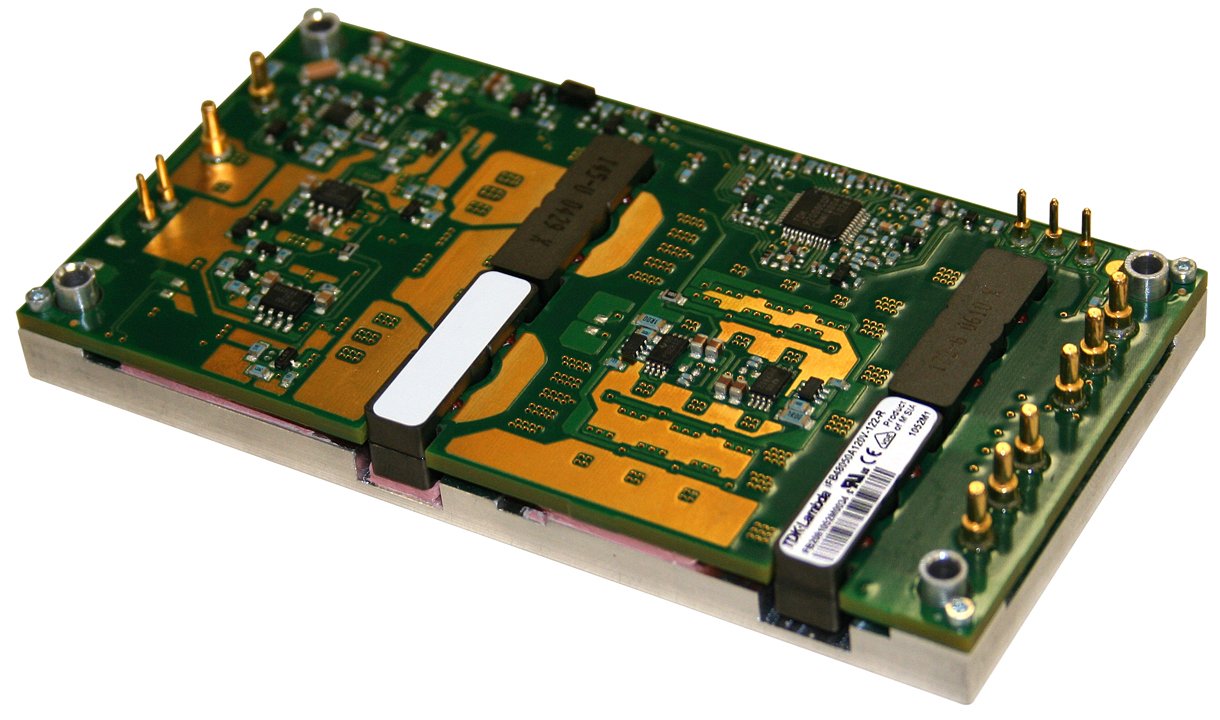

iFB Series - 600W - Single Output

• Standard Full Brick Footprint
• 36-75 Vdc Input
• 9.6 and 12 Vdc Nominal Outputs
• 1500 Vdc Isolation
• Opto-isolated Remote On / Off

iHG Series - 100W to 456W - Single Output

• Standard Half Brick Footprint
• 36-75 Vdc Input
• 12 Vdc Nominal Output
• 1500 Vdc Isolation
• -40 - 116 Baseplate Temperature
• Low component count
• Constant Switching Frequency

Vega DC Series - 450W - Single Output / Multiple Output

• 1-10 Wide Range Outputs with Adjustment
• Cooling - System air/End fan/Reverse fan
• 48VDC Input Option
• Medical Approval Options
• MIL-STD-810 Shock and Vibration
• PFC compliant to EN61000-3-2
• Safety Agency Approvals EN, cULus, BSI, CE

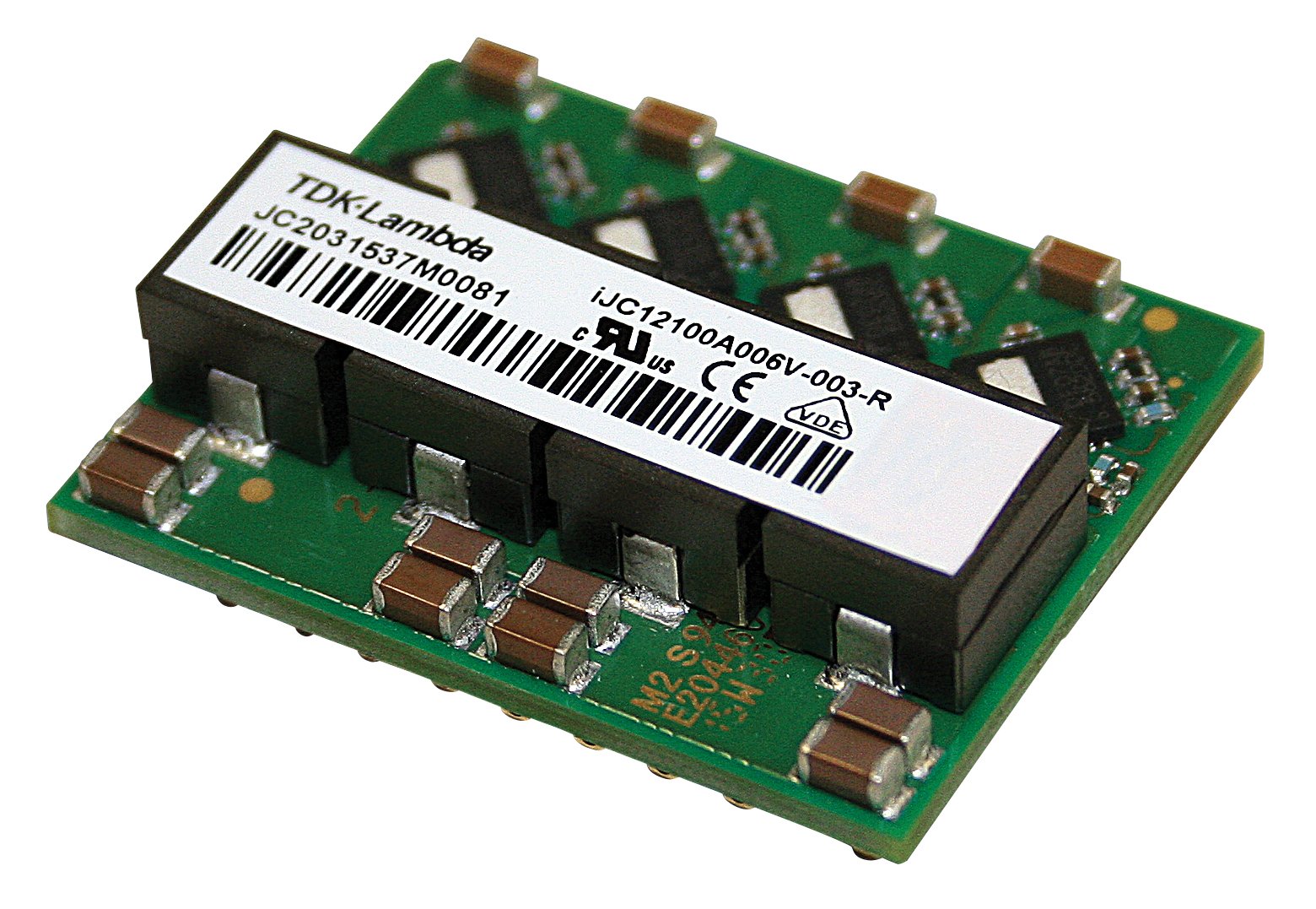

iJC Series - 150W - Single Output

• Only 1.5 in2 Board Space
• PMBus™ Compliant (Read & Write)
• Surface Mountable
• Digital Adaptive Control
• Parallel Operation with Current Sharing
• Configurable Sequence & Fault Management

iJB Series - 120W - Single Output

• Only 1.0 in2 Board Space
• PMBus™ Compliant (Read & Write)
• Surface Mountable
• Digital Adaptive Control
• Parallel Operation with Current Sharing
• Configurable Sequence & Fault Management

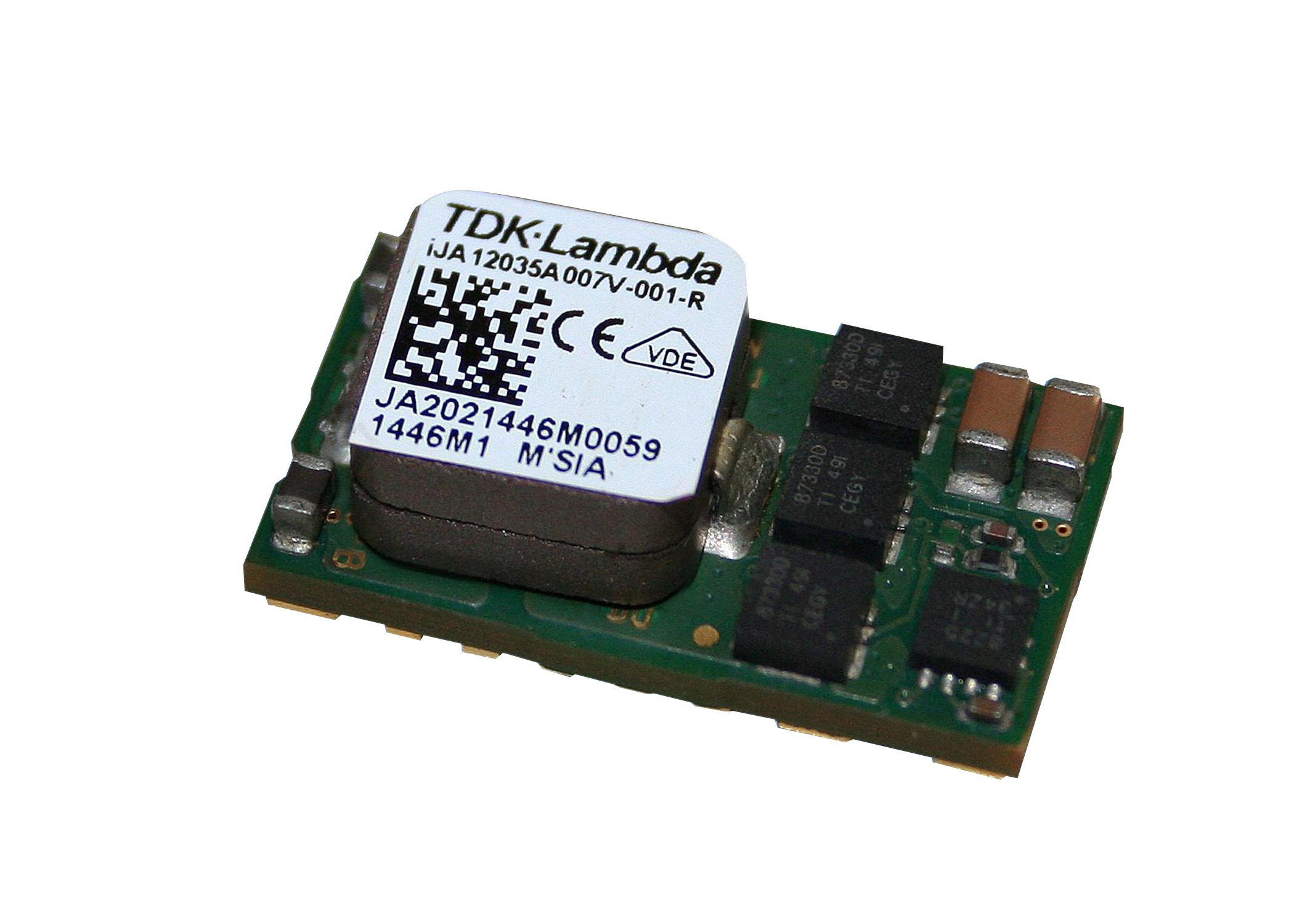

iJA Series - 100W - Single Output

• Only 0.45 in2 Board Space
• PMBus™ Compliant (Read & Write)
• Surface Mountable
• Digital Adaptive Control
• Parallel Operation with Current Sharing
• Configurable Sequence & Fault Management

PAQ Series - 14W to 100W - Single Output

• Standard Quarter Brick Footprint
• World class 90% efficiency
• No heatsink required
• UL60950, CSA60950, EN60950 approvals

PV Series - 1.5W to 3W - Single Output / Multiple Output

• Input - Output Isolation
• Single In-line Type
• Overcurrent Protection
• Adjustable Output Voltage
• Available in single and dual outputs

PVD Series - 1.5W to 3W - Single Output / Multiple Output

• Input - Output Isolation
• Single In-line Type
• Overcurrent Protection
• Adjustable Output Voltage
• Available in single and dual outputs

ALE-Systems Series - 60,000W to 1,000,000W - Single Output

• 100% Modular/Scalable Design
• Compact Mechanical Layout
• High Efficiency
• Water-cooled
• Excellent Power Factor
• Low Ripple

ZUP Series - 198W to 864W - Single Output

• Built-in RS232 and RS485 Interface
• Parallel Operation
• Active Power Factor Correction
• Embedded Microprocessor Controller
• Voltage up to 120V, Current up to 132A
• Digital Meters
• Three year warranty
