Isolated PCB Mount DC-DC Converters

TDK-Lambda is a global supplier of DC-DC converters with a broad range of power levels. The commercial off the shelf power solutions encompass industry standard board mounted products to chassis mount configurations for the Industrial, Healthcare, Information and Communications Technology (ICT), and Avionics and Defense markets.

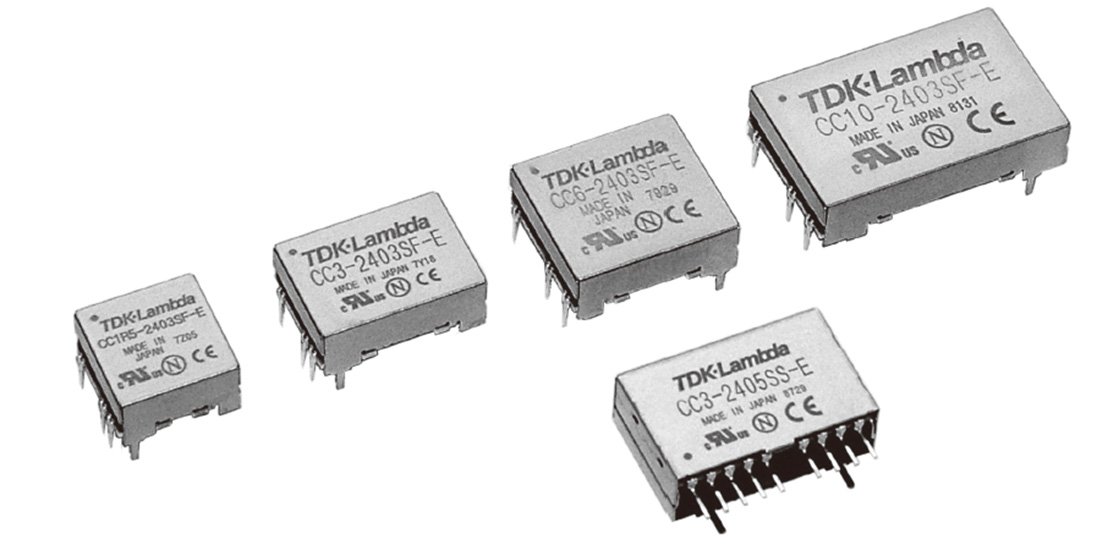

CC-E Series - 1.3W to 25W - Single Output / Multiple Output

CC-E Series
  • Compact Footprint / Low Profile
  • 5, 12, 24 and 48 Vdc Nominal Inputs
  • 3.3, 5, 12, 15, ±12, ±15 Vdc Outputs
  • 500 Vac Isolation
  • -40 to 85 °C Operating Temperature
  • Through Hole or SMT Versions
  • Five year warranty

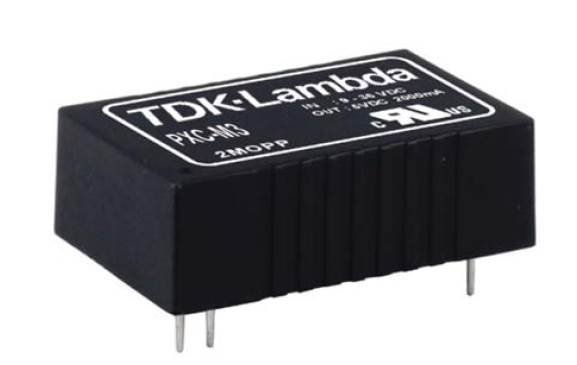

PXC-M Series - 3W to 10W - Single Output / Multiple Output

PXC-M Series
  • Industry Standard DIP-24 Package
  • 9-36 Vdc, 18-75 Vdc Inputs
  • 3.3, 5, 12, 15, 24, ±5, ±12, ±15 Vdc Outputs
  • 5 kVAC Isolation (2 x MOPP)
  • IEC/EN60601-1, ES60601-1, CE Mark
  • Low Off-Load Power Draw
  • 2.5µA Leakage Current

PXD Series - 10W to 30W - Single Output / Multiple Output

PXD  Series
  • Industry Standard 2" x 1" Footprint
  • 9-18, 9-36, 18-36, 18-75, 36-75 Vdc Inputs
  • 3.3, 5, 12, 15, ±5, ±12, ±15 Vdc Outputs
  • 1600 Vdc Isolation
  • -40 to 100 °C Case Temperature
  • Six-sided Shielding
  • EN61000-4 Immunity

PXA Series - 11.6W to 15.6W - Single Output

PXA  Series
  • Industry Standard 1" x 1" Footprint
  • 9-36 Vdc, 18-36 Vdc, 18-75 Vdc Inputs
  • 3.3, 5, 12, 15 Vdc Outputs
  • 2250 Vdc Isolation
  • -40 to 85 °C Ambient Temperature
  • Through Hole or Surface Mount Versions
  • EN61000-4 Immunity

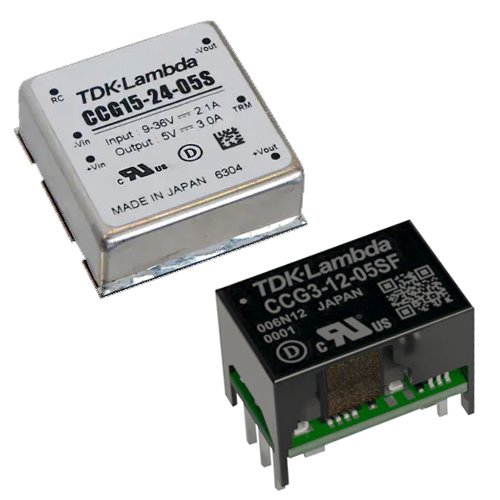

CCG Series - 13.2W to 30W - Single Output / Multiple Output

NewRecommended
CCG Series
  • Industry Standard 1" x 1" Footprint
  • 9-36 Vdc, 18-76 Vdc Inputs
  • 3.3, 5, 12, 15, 24, 30, ±12, 15 Vdc Outputs
  • 1500 Vdc Isolation
  • -40 to 110 °C Case Temperature
  • Six-Sided Shielding
  • Potted for rugged operation

CC-P-E Series - 15W to 30W - Single Output

CC-P-E Series
  • Compact Footprint / Low Profile
  • 18-36 Vdc, 36-76 Vdc Inputs
  • 3.3, 5, 12, 15 Vdc Outputs
  • Isolation: 1 kVdc (Case); 1.5 kVdc (Uncased)
  • -40 to 85 °C Operating Temperature
  • Parallel Operation

PXB Series - 15W - Single Output / Multiple Output

PXB  Series
  • Industry Standard 1" x 1" Footprint
  • 9-18, 9-36, 18-36, 18-75, 36-75 Vdc Inputs
  • 3.3, 5, 12, 15, ±5, ±12, ±15 Vdc Outputs
  • 1600 Vdc Isolation
  • -40 to 100 °C Case Temperature
  • Six-sided Shielding
  • EN61000-4 Immunity

PXG-M Series - 15W to 20W - Single Output / Multiple Output

NewRecommended
PXG-M Series
  • Industry Standard 1.6" x 1" Footprint
  • 9-36, 18-75 Vdc Inputs
  • 5, 12, 15, 24, ±5, ±12, ±15 Vdc Outputs
  • 5000kVac Input to Output Isolation
  • -40 to +105 °C Case Temperature
  • Medical and Industrial Safety Certifications
  • Low No Load Power Consumption

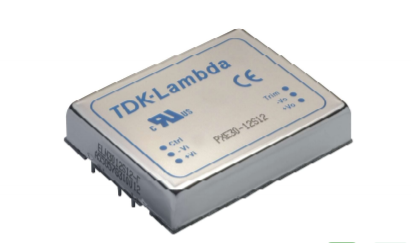

PXE Series - 20W to 30W - Single Output / Multiple Output

PXE Series
  • Industry Standard 2" x 1.6" Footprint
  • 9-18, 9-36, 18-36, 18-75, 36-75 Vdc Inputs
  • 3.3, 5, 12, 15, ±5, ±12, ±15 Vdc Outputs
  • 1600 Vdc Isolation
  • -40 to 100 °C Case Temperature
  • Six-sided Shielding
  • EN61000-4 Immunity

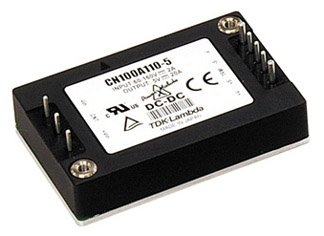

CN-A Series - 30W to 200W - Single Output

CN-A Series
  • Standard Quarter / Half Brick Footprint
  • 14.4-36 Vdc, 60-160 Vdc Inputs
  • 5, 12, 15, 24 Vdc Outputs
  • 3000 Vac Isolation
  • -40 to 100 °C Baseplate Temperature
  • IEC61373 Shock & Vibration
  • Five year warranty

PXD-M Series - 30W - Single Output / Multiple Output

NewRecommended
PXD-M Series
  • Industry Standard 2" x 1" Footprint
  • 9-36, 18-75 Vdc Inputs
  • 5, 12, 15, 24, ±5, ±12, ±15 Vdc Outputs
  • 5000kVac Input to Output Isolation
  • -40 to +105 °C Case Temperature
  • Medical and Industrial Safety Certifications
  • Low No Load Power Consumption

PAE Series - 36W to 100W - Single Output

PAE Series
  • Standard Eighth Brick Footprint
  • 36-76 Vdc Input
  • 1.8, 2.5, 3.3, 5 Vdc Outputs
  • 1500 Vdc Isolation
  • -40 to 85 °C Operating Ambient Temperature
  • 8.5mm height profile

iSA Series - 36W to 82.5W - Single Output

iSA Series
  • 1/16th Brick Footprint
  • 36-75 Vdc Input
  • 1.2V 30A, 12V 6.5A Nominal Outputs
  • 1500 Vdc Isolation
  • Constant Switching Frequency

PAH Series - 38.6W to 451W - Single Output

PAH Series
  • Standard Half Brick Footprint
  • 18-36 Vdc, 36-76 Vdc Inputs
  • 12V 29A, 48V 9.4A Nominal Outputs
  • 1500 Vdc Isolation
  • Through Hole Mounting
  • Constant Switching Frequency

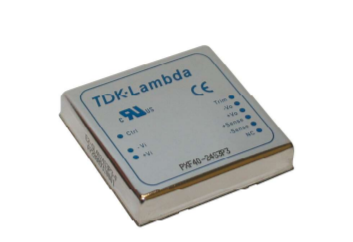

PXF Series - 40W to 60W - Single Output / Multiple Output

PXF Series
  • Industry Standard 2" x 2" Footprint
  • 9-18, 9-36, 18-36, 18-75 Vdc Inputs
  • Single, Dual and Triple Outputs
  • 1600 Vdc Isolation
  • -40 to 100 °C Case Temperature
  • Six-sided Shielding
  • EN61000-4 Immunity

iEA Series - 48W to 78W - Single Output

iEA Series
  • Standard Eighth Brick Footprint
  • 36-75 Vdc Input
  • 5, 12, 15, 18 and 28 Vdc Outputs
  • 1500 Vdc Isolation
  • -40 to 125 °C Operating Temperature
  • Constant Switching Frequency
  • Constant Switching Frequency

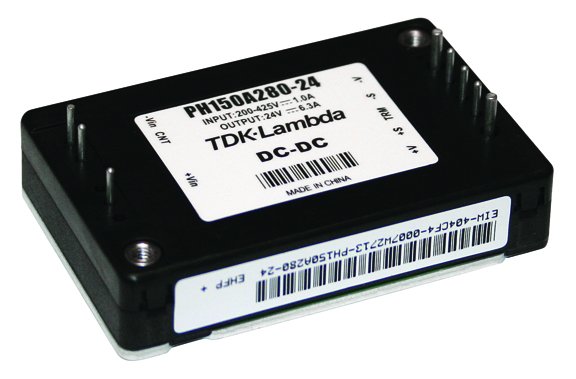

PH-A Series - 50W to 600W - Single Output

NewRecommended
PH-A Series
  • Standard Quarter / Half Brick Footprint
  • 200-425 Vdc Input
  • 3.3, 5, 12, 24, 28, 48 Vdc Outpouts
  • 3000 Vac Isolation
  • -40 to 100 °C Baseplate Temperature
  • Certified to IEC/EN62477-1 OVCIII

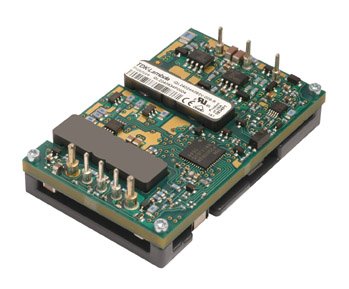

iQL Series - 72W to 308W - Single Output

iQL Series
  • Standard Quarter Brick Footprint
  • 18-36 Vdc, 36-76 Vdc Inputs
  • 1.2, 2.5, 3.3, 5, 12, 28 Vdc Outputs
  • 1500 Vdc Isolation
  • Open frame or Baseplate options
  • Up to 94% Efficiency

HQA Series - 85W to 120W - Single Output

Recommended
HQA Series
  • Standard Quarter Brick Footprint
  • 9-40 Vdc, 18-40 Vdc Inputs
  • 3.3, 5, 12, 15, 24, 28, 48 Vdc Outputs
  • 2250 Vdc Isolation
  • -55 to 115°C Baseplate temperature
  • MIL-STD-461; 1275; 704; DO-160
  • No Optocouplers used

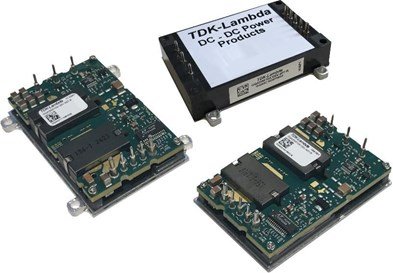

GQA Series - 120W - Single Output

Recommended
GQA Series
  • Standard Quarter Brick Footprint
  • 9-36 Vdc, 18-36 Vdc Inputs
  • 5, 12, 15, 24, 28, 48 Vdc Outputs
  • 1500 Vdc up to 3000 Vdc Isolation
  • -40 to 105°C Baseplate temperature
  • Open Frame or Encapsulated Construction
  • Flanged or Non-flanged Baseplate

iQE Series - 132W to 204W - Single Output

iQE Series
  • Standard Quarter Brick Footprint
  • 18-60 Vdc, 36-75 Vdc Inputs
  • 5, 12, 15 Vdc Outputs
  • 1500 Vdc Isolation
  • -40 to 125 °C Operating Temperature
  • > 90% Efficiency

PAF Series - 264W to 702W - Single Output

PAF Series
  • Standard Full Brick Footprint
  • 18-36 Vdc, 36-76 Vdc, 200-400 Vdc Inputs
  • 3.3, 5, 12, 24, 28, 48 Vdc Outputs
  • 1500 Vdc, 3000 Vac Isolation
  • -40 to 100 °C Baseplate Temperature
  • Opto Isolated Remote On / Off

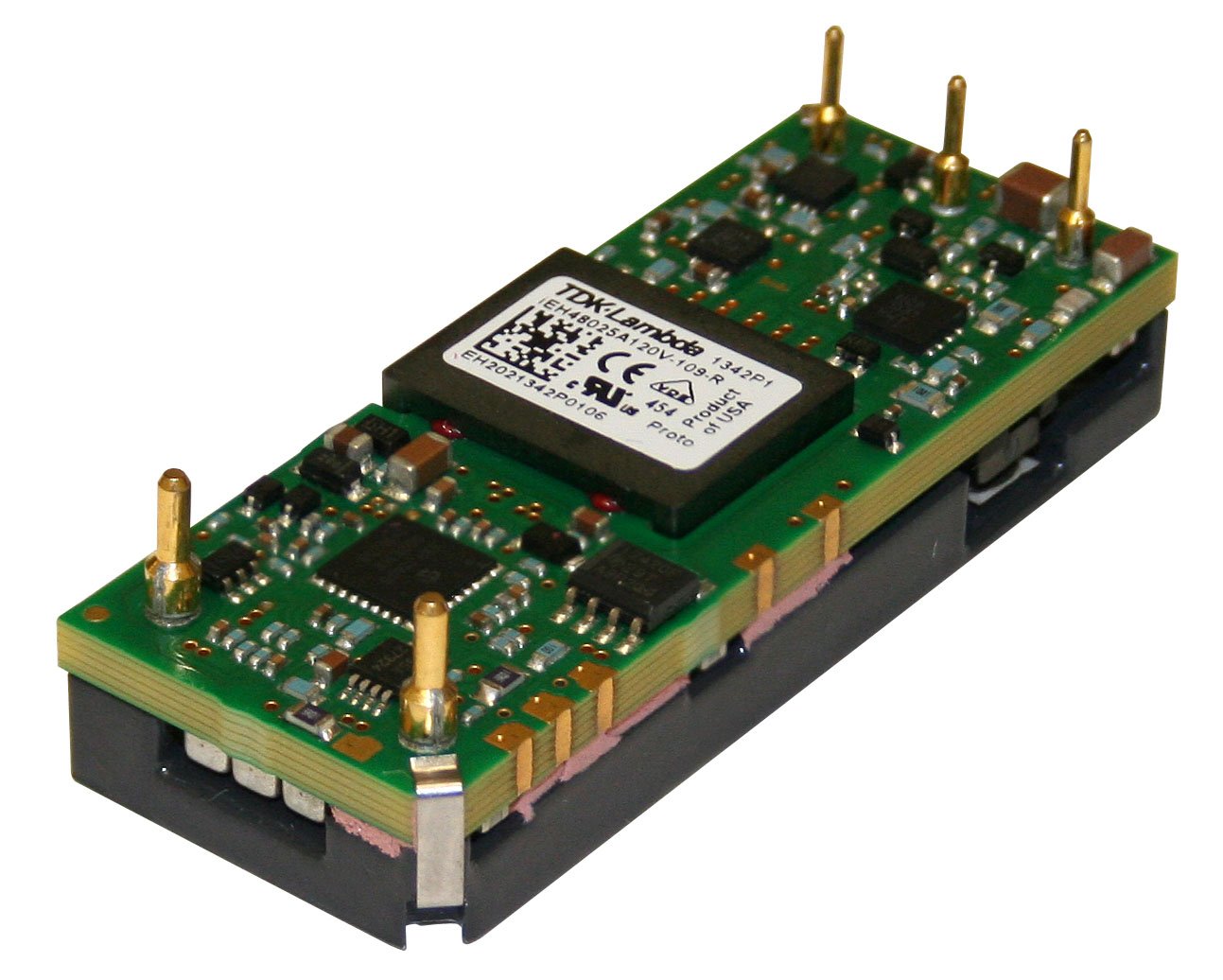

iEH Series - 300W - Single Output

iEH Series
  • Standard Eighth Brick Footprint
  • 36-75 Vdc Input
  • 10.8, 11.6 and 12 Vdc Outputs
  • 2250 Vdc Isolation
  • Digital adaptive control
  • Constant Switching Frequency

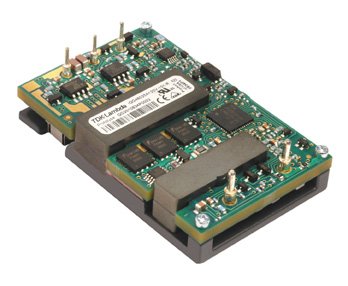

iQG Series - 300W to 504W - Single Output

iQG Series
  • Standard Quarter Brick Footprint
  • 36-76 Vdc Inputs
  • 9.6, 12 Vdc Outputs
  • 1500 Vdc Isolation
  • Baseplate Cooled
  • 94.5% Typical Efficiency
  • Droop Load Share Option

Vega DC Series - 450W - Single Output / Multiple Output

Vega DC Series
  • 1-10 Wide Range Outputs with Adjustment
  • Cooling - System air/End fan/Reverse fan
  • 48VDC Input Option
  • Medical Approval Options
  • MIL-STD-810 Shock and Vibration
  • PFC compliant to EN61000-3-2
  • Safety Agency Approvals EN, cULus, BSI, CE

iFB Series - 600W - Single Output

iFB Series
  • Standard Full Brick Footprint
  • 36-75 Vdc Input
  • 9.6 and 12 Vdc Nominal Outputs
  • 1500 Vdc Isolation
  • Opto-isolated Remote On / Off
