Non-isolated PCB Mount DC-DC Converters

TDK-Lambda is a global supplier of DC-DC converters with a broad range of power levels. The commercial off the shelf power solutions encompass industry standard board mounted products to chassis mount configurations for the Industrial, Healthcare, Information and Communications Technology (ICT), and Avionics and Defense markets.

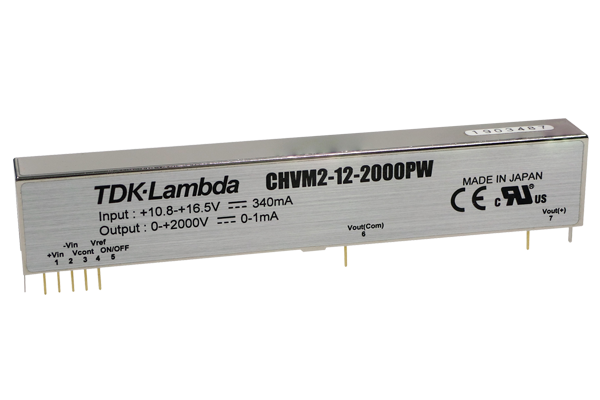

CHVM Series - 1.4W to 3W - Single Output

NewRecommended

• Compact Footprint / Low Profile
• 11-13, 10.8-13.2, 10.8-16.5 Vdc Inputs
• Programmable 0-±2000 Vdc Output
• Five-sided shielding
• Remote adjustment
• Reduced Radiated and Conducted Noise
• Less External Filtering Required

iCF Series - 16.5W to 24.7W - Single Output

• DOSA Compatible Footprint
• 2.4-5.5 Vdc, 4.5-14 Vdc Inputs
• 0.6-3.63 Vdc, 0.7-5.5 Vdc Outputs
• Non-Isolated
• Excellent Transient Response
• LGA or EPC format
• No external loop tuning components needed

iCG Series - 33W - Single Output

• DOSA Compatible Footprint
• 2.4-5.5 Vdc, 4.5-14 Vdc Inputs
• 0.6-3.63 Vdc, 0.7-5.5 Vdc Outputs
• Non-Isolated
• Excellent Transient Response
• LGA or EPC format
• No external loop tuning components needed

iBF Series - 43.5W to 66W - Single Output

• DOSA Compatible Footprint
• 2.4-5.5 Vdc, 4.5-14 Vdc Inputs
• 0.6-3.63 Vdc, 0.7-5.5 Vdc Outputs
• Non-Isolated
• Excellent Transient Response
• LGA or EPC format
• No external loop tuning components needed

iAF Series - 72.6W to 110W - Single Output

• DOSA Compatible Footprint
• 2.4-5.5 Vdc and 4.5-14 Vdc Inputs
• 0.6-3.63 Vdc, 0.7-5.5 Vdc Outputs
• Non-Isolated
• Excellent Transient Response
• LGA or EPC format
• No external loop tuning components needed

i6A Series - 75W to 250W - Single Output

Recommended

• 1/16th Brick Footprint
• 9-40 Vdc, 9-53 Vdc Inputs
• 3.3 up to 40, -3.3 to -30 Vdc Outputs
• Up to 20 A max Output Current
• Non-Isolated
• Remote ON/OFF, Sense, Power Good, Trim
• Sync, Sequencing

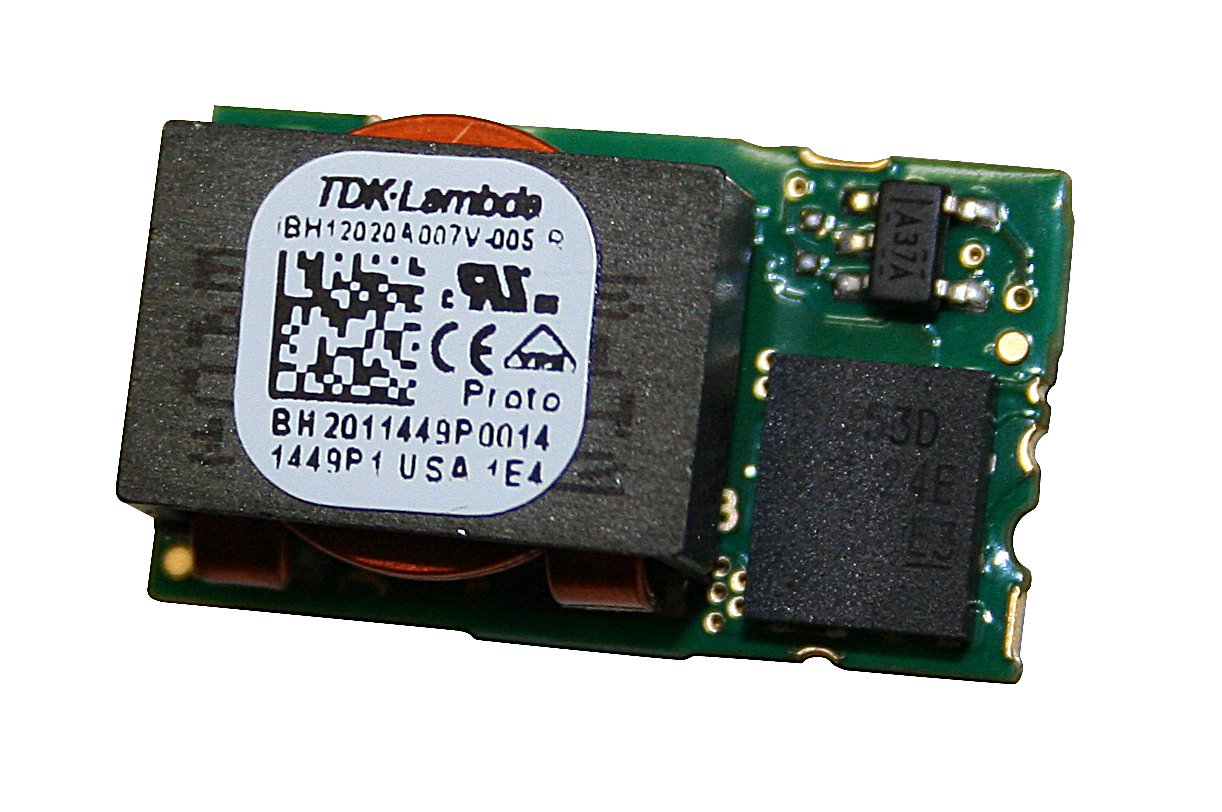

iBH Series - 80W - Single Output

• DOSA Compatible Footprint
• 3.5-14 Vdc Input
• 0.7-5.5 Vdc Output
• Non-Isolated
• Excellent Transient Response
• No external loop tuning components needed

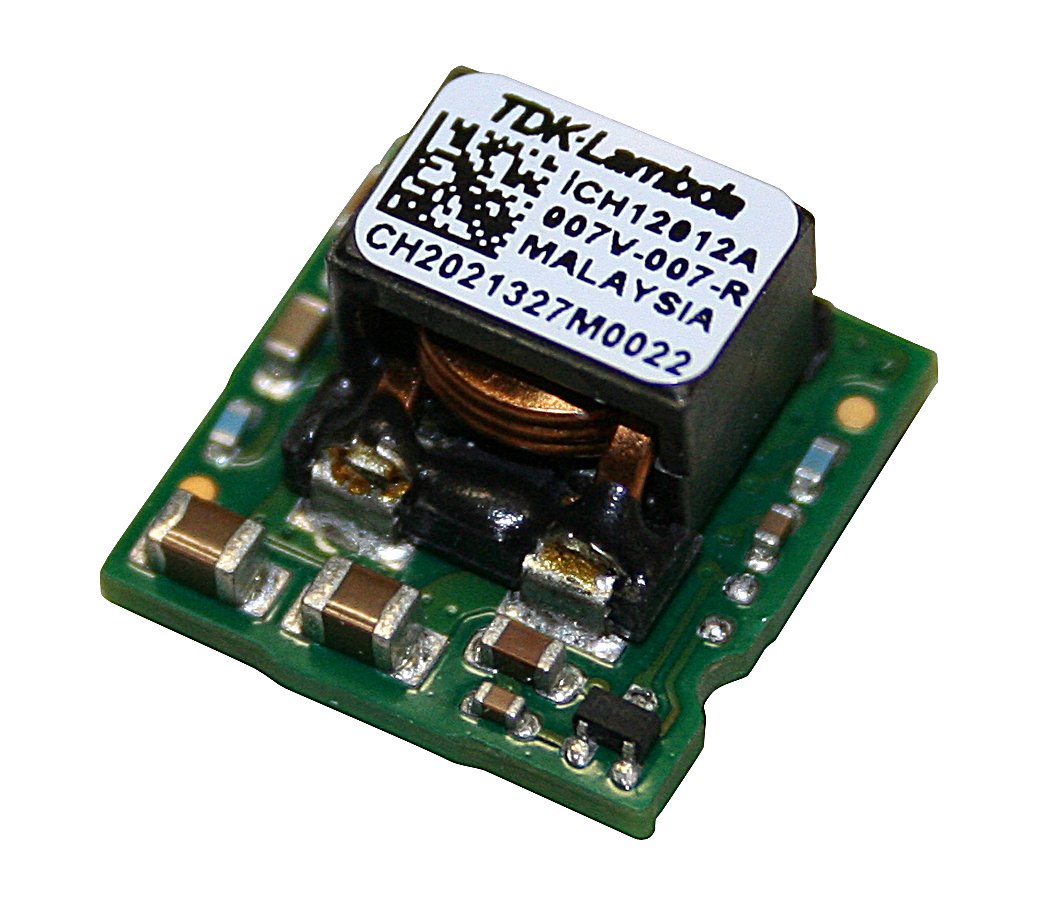

iCH Series - 85W - Single Output

• DOSA Compatible Footprint
• 4.5-14 Vdc Input
• 0.7-8.5 Vdc Output
• Non-Isolated
• Excellent Transient Response
• No external loop tuning components needed

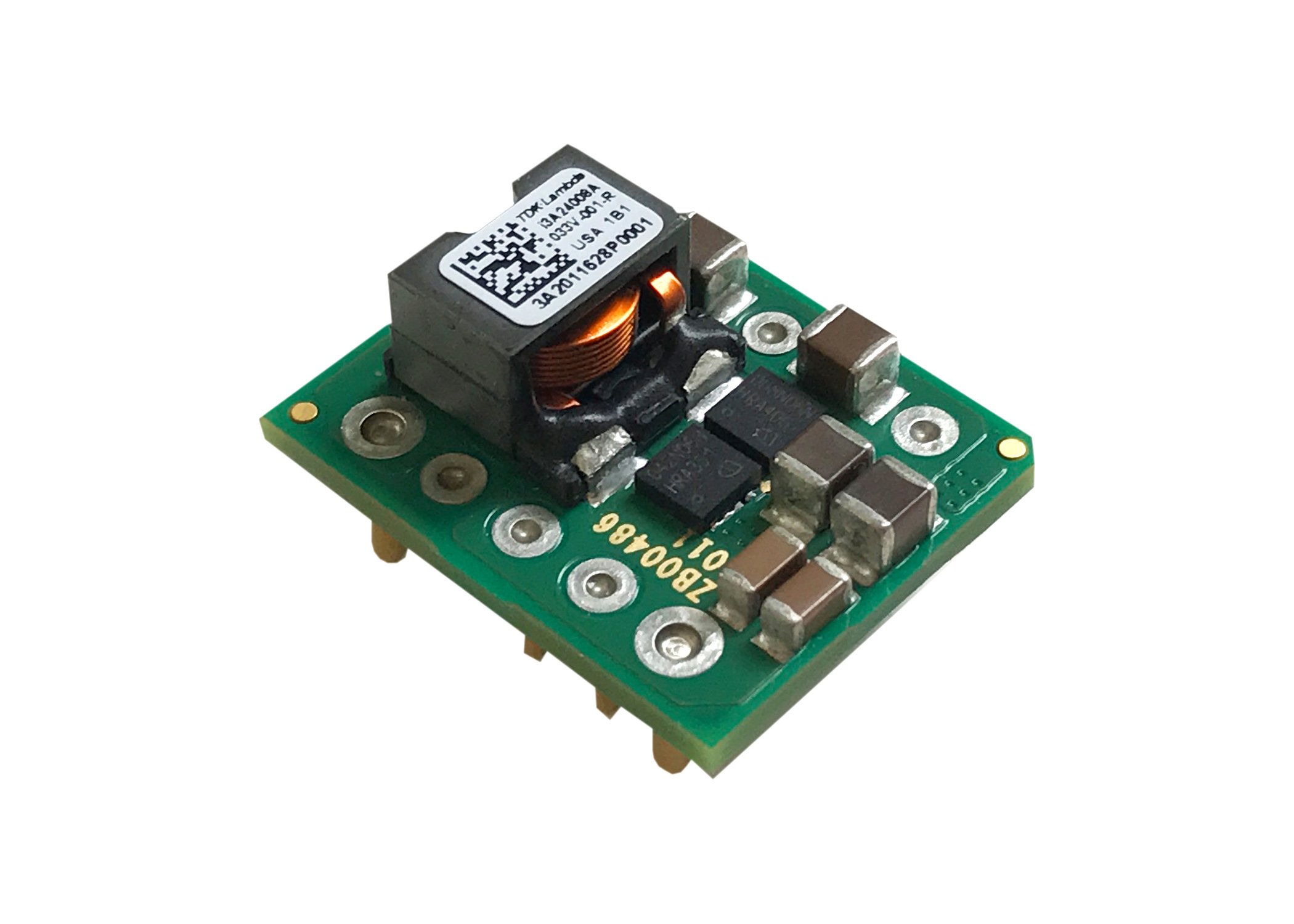

i3A Series - 100W - Single Output

Recommended

• 1/32nd Brick Footprint
• 9-53 Vdc Input
• 3.3-16.5, 5-30 Vdc Adjustable Outputs
• Up to 8 A max Output Current
• Non-Isolated
• Remote ON/OFF, Sense, Power Good, Trim

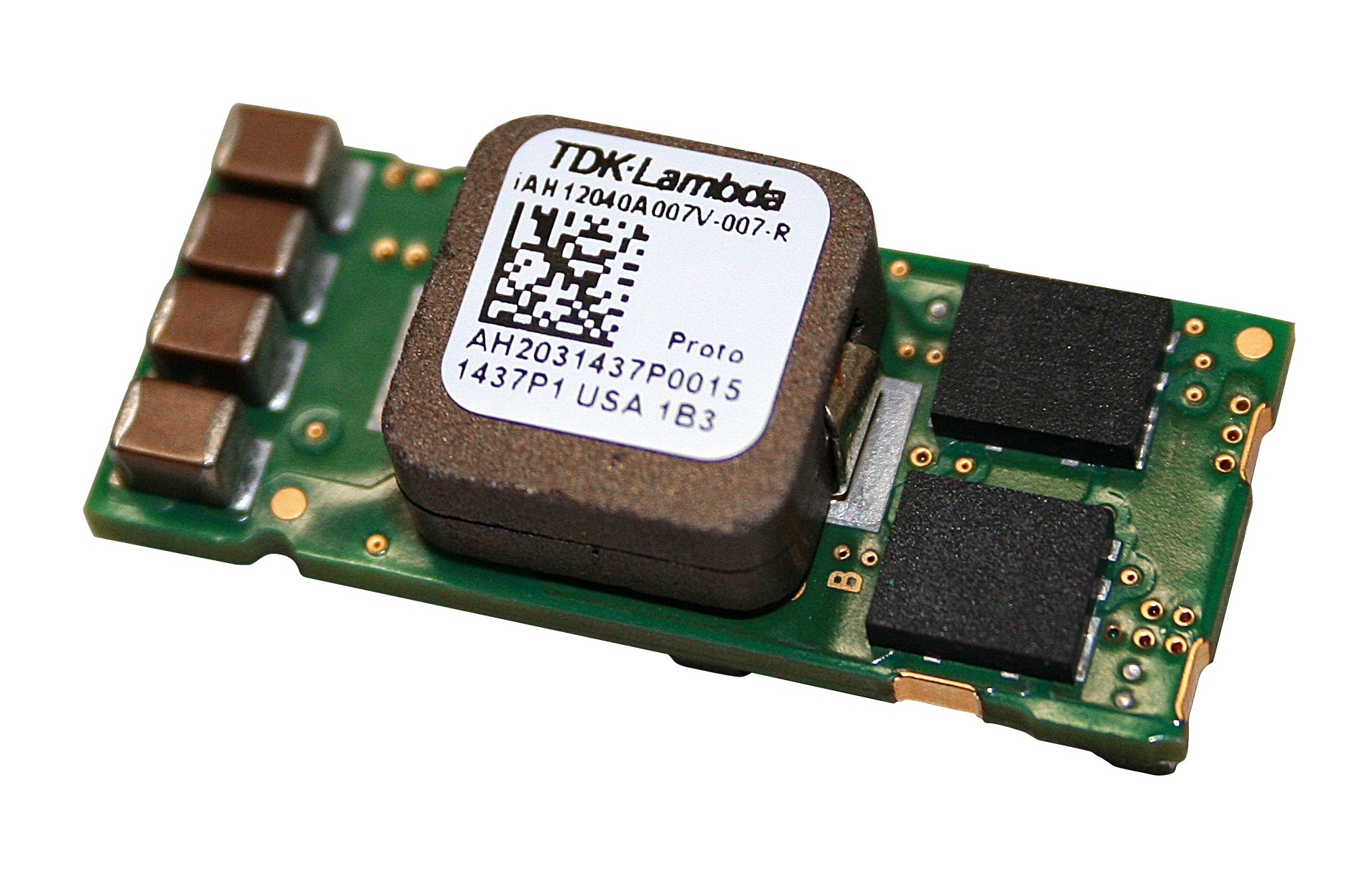

iAH Series - 150W - Single Output

• DOSA Compatible Footprint
• 3.5-17 Vdc Input
• 0.7-5.5 Vdc Output
• Non-Isolated
• Excellent Transient Response
• No external loop tuning components needed

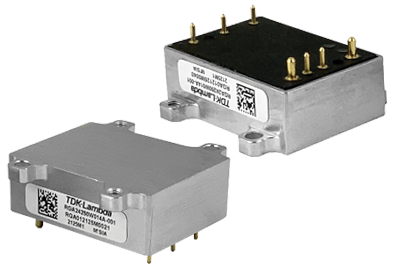

RGA Series - 250W - Single Output

NewRecommended

• 1/16th Brick Footprint
• 9-40 Vdc, 9-53 Vdc Inputs
• 3.3 up to 40 Vdc Outputs
• Up to 20 A max Output Current
• Non-Isolated Step-Down
• -40 to 110 °C Case Temperature
• Rugged 5-sided Aluminum Case

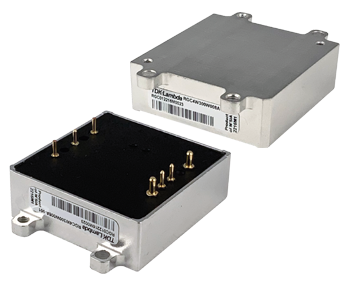

RGC Series - 300W - Single Output

NewRecommended

• Wide 1/16th Footprint
• 9-53 Vdc Inputs
• 5-28, 9.6-48 Vdc Outputs
• Up to 12.5 A max Output Current
• Non-Isolated Step Up/Step Down
• -40 to 110 °C Case Temperature
• Rugged 5-sided Aluminum Case

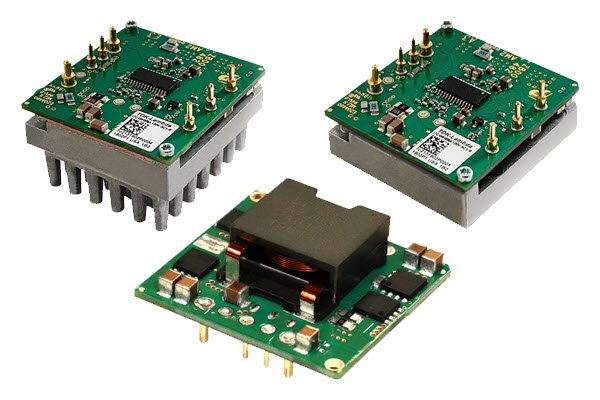

i7C Series - 300W - Single Output

NewRecommended

• Wide 1/16th Brick Footprint
• 9-36, 9-53 Vdc Input
• 5-28, 8-24, 9.6-48 Vdc Outputs
• Non-Isolated Step Up/Step Down
• -40 to 125 °C Operating Temperature
• Openframe, Baseplate or Heatsink options
• Trim, On/Off, Power Good, Sync, Imon

i7A Series - 400W to 750W - Single Output

NewRecommended

• Wide 1/16th Brick Footprint
• 9-18, 18-32, 18-60 Vdc Inputs
• 0.8-8, 3.3-18, 3.3-24 Vdc Outputs
• Non-Isolated Step Down
• -40 to 125 °C Operating Temperature
• Openframe, Baseplate or Heatsink options
• Trim, On/Off, Sense, OCP Adjust
