DC-DC Converters

TDK-Lambda is a global supplier of DC-DC converters with a broad range of power levels. The commercial off the shelf power solutions encompass industry standard board mounted products to chassis mount configurations for the Industrial, Healthcare, Information and Communications Technology (ICT), and Avionics and Defense markets.

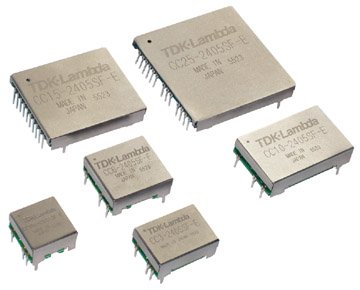

CC-E Series - 1.3W to 25W - Single Output / Multiple Output

• Compact Footprint / Low Profile
• 5, 12, 24 and 48 Vdc Nominal Inputs
• 3.3, 5, 12, 15, ±12, ±15 Vdc Outputs
• 500 Vac Isolation
• -40 to 85 °C Operating Temperature
• Through Hole or SMT Versions
• Five year warranty

CCG Series - 1.3W to 30W - Single Output / Multiple Output

NewRecommended

• Space Saving Package Sizes
• 4.5-18V, 9-36 Vdc or 18-76 Vdc Inputs
• 3.3, 5, 12, 15, 24, 30, ±12, ±15 Vdc Outputs
• 1500 Vdc Isolation
• -40 up to 110 °C Case Temperature
• Six-Sided Shielding (CCG15-30)
• Through-hole and SMT terminations (CCG1R5-10)

CHVM Series - 1.4W to 3W - Single Output

NewRecommended

• Compact Footprint / Low Profile
• 11-13, 10.8-13.2, 10.8-16.5 Vdc Inputs
• Programmable 0-±2000 Vdc Output
• Five-sided shielding
• Remote adjustment
• Reduced Radiated and Conducted Noise
• Less External Filtering Required

PXC-M Series - 3W to 10W - Single Output / Multiple Output

• Industry Standard DIP-24 Package
• 9-36 Vdc, 18-75 Vdc Inputs
• 3.3, 5, 12, 15, 24, ±5, ±12, ±15 Vdc Outputs
• 5 kVAC Isolation (2 x MOPP)
• IEC/EN60601-1, ES60601-1, CE Mark
• Low Off-Load Power Draw
• 2.5µA Leakage Current

PXD Series - 10W to 60W - Single Output / Multiple Output

• Industry Standard 2" x 1" Footprint
• 9-18, 9-36, 18-36, 18-75, 36-75 Vdc Inputs
• 3.3, 5, 12, 15, 24, 48, ±5, ±12, ±15, ±24 Vdc Outputs
• 1600 Vdc Isolation
• -40 to 105 °C Case Temperature
• Six-sided Shielding
• EN61000-4 Immunity

PXA Series - 11.6W to 15.6W - Single Output

• Industry Standard 1" x 1" Footprint
• 9-36 Vdc, 18-36 Vdc, 18-75 Vdc Inputs
• 3.3, 5, 12, 15 Vdc Outputs
• 2250 Vdc Isolation
• -40 to 85 °C Ambient Temperature
• Through Hole or Surface Mount Versions
• EN61000-4 Immunity

CC-P-E Series - 15W to 30W - Single Output

• Compact Footprint / Low Profile
• 18-36 Vdc Inputs
• 3.3, 5, 12, 15 Vdc Outputs
• Isolation: 1 kVdc (Case); 1.5 kVdc (Uncased)
• -40 to 85 °C Operating Temperature
• Parallel Operation

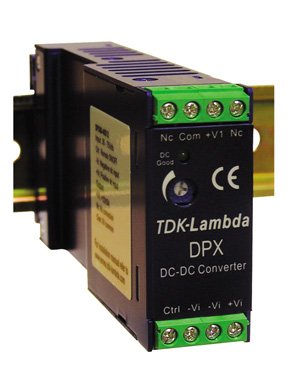

DPX Series - 15W to 60W - Single Output / Multiple Output

• Single, Dual and Triple Outputs
• 9.5-36 Vdc, 18-75 Vdc Inputs
• Meets EN55022 Class B
• 1600 Vdc Isolation
• -40 up to 95 °C Operating Temperature
• EN61000-4 Immunity
• Narrow 24.5 mm width

PXB Series - 15W - Single Output / Multiple Output

• Industry Standard 1" x 1" Footprint
• 9-18, 9-36, 18-36, 18-75, 36-75 Vdc Inputs
• 3.3, 5, 12, 15, ±5, ±12, ±15 Vdc Outputs
• 1600 Vdc Isolation
• -40 to 100 °C Case Temperature
• Six-sided Shielding
• EN61000-4 Immunity

PXG-M Series - 15W to 20W - Single Output / Multiple Output

NewRecommended

• Industry Standard 1.6" x 1" Footprint
• 9-36, 18-75 Vdc Inputs
• 5, 12, 15, 24, ±5, ±12, ±15 Vdc Outputs
• 5000kVac Input to Output Isolation
• -40 to +105 °C Case Temperature
• Medical and Industrial Safety Certifications
• Low No Load Power Consumption

iCF Series - 16.5W to 24.7W - Single Output

• DOSA Compatible Footprint
• 2.4-5.5 Vdc, 4.5-14 Vdc Inputs
• 0.6-3.63 Vdc, 0.7-5.5 Vdc Outputs
• Non-Isolated
• Excellent Transient Response
• LGA or EPC format
• No external loop tuning components needed

PXE Series - 20W to 30W - Single Output / Multiple Output

• Industry Standard 2" x 1.6" Footprint
• 9-18, 9-36, 18-36, 18-75, 36-75 Vdc Inputs
• 3.3, 5, 12, 15, ±5, ±12, ±15 Vdc Outputs
• 1600 Vdc Isolation
• -40 to 100 °C Case Temperature
• Six-sided Shielding
• EN61000-4 Immunity

PYD Series - 20W - Single Output / Multiple Output

NewRecommended

• 3000V Input to Output Isolation
• Potted Plastic Case
• Wide Range Input 18:1 (8.5 - 160VDC)
• Industry Standard Package Sizes
• IEC62368-1, CE and UKCA Mark
• Suitable for Railway and Industrial Applications

CN-A Series - 30W to 200W - Single Output

• Standard Quarter / Half Brick Footprint
• 14.4-36 Vdc, 60-160 Vdc Inputs
• 5, 12, 15, 24 Vdc Outputs
• 3000 Vac Isolation
• -40 to 100 °C Baseplate Temperature
• IEC61373 Shock & Vibration
• Five year warranty

PXD-M Series - 30W - Single Output / Multiple Output

NewRecommended

• Industry Standard 2" x 1" Footprint
• 9-36, 18-75 Vdc Inputs
• 5, 12, 15, 24, ±5, ±12, ±15 Vdc Outputs
• 5000kVac Input to Output Isolation
• -40 to +105 °C Case Temperature
• Medical and Industrial Safety Certifications
• Low No Load Power Consumption

PYQ Series - 30W to 75W - Single Output

NewRecommended

• 3000V Input to Output Isolation
• Potted Plastic Case
• Wide Range Input 12:1 (14 - 160VDC) and 8:1 (9 - 75VDC)
• Quarter-Brick Footprint
• IEC62368-1, CE and UKCA Mark
• Suitable for Railway and Industrial Applications

iCG Series - 33W - Single Output

• DOSA Compatible Footprint
• 2.4-5.5 Vdc, 4.5-14 Vdc Inputs
• 0.6-3.63 Vdc, 0.7-5.5 Vdc Outputs
• Non-Isolated
• Excellent Transient Response
• LGA or EPC format
• No external loop tuning components needed

iSA Series - 36W to 82.5W - Single Output

• 1/16th Brick Footprint
• 36-75 Vdc Input
• 1.2V 30A, 12V 6.5A Nominal Outputs
• 1500 Vdc Isolation
• Constant Switching Frequency

PAH Series - 38.6W to 451W - Single Output

• Standard Half Brick Footprint
• 18-36 Vdc, 36-76 Vdc Inputs
• 12V 29A, 48V 9.4A Nominal Outputs
• 1500 Vdc Isolation
• Through Hole Mounting
• Constant Switching Frequency

PXF Series - 40W to 60W - Single Output / Multiple Output

• Industry Standard 2" x 2" Footprint
• 9-18, 9-36, 18-36, 18-75 Vdc Inputs
• Single, Dual and Triple Outputs
• 1600 Vdc Isolation
• -40 to 100 °C Case Temperature
• Six-sided Shielding
• EN61000-4 Immunity

iBF Series - 43.5W to 66W - Single Output

• DOSA Compatible Footprint
• 2.4-5.5 Vdc, 4.5-14 Vdc Inputs
• 0.6-3.63 Vdc, 0.7-5.5 Vdc Outputs
• Non-Isolated
• Excellent Transient Response
• LGA or EPC format
• No external loop tuning components needed

iEA Series - 48W to 78W - Single Output

• Standard Eighth Brick Footprint
• 36-75 Vdc Input
• 5, 12, 15, 18 and 28 Vdc Outputs
• 1500 Vdc Isolation
• -40 to 125 °C Operating Temperature
• Constant Switching Frequency
• Constant Switching Frequency

PH-A Series - 50W to 1200W - Single Output

NewRecommended

• Quarter, Half & Full Brick Sizes
• 200-425 Vdc Input
• 3.3, 5, 12, 24, 28, 48 Vdc Outputs
• 3000 Vac Isolation
• -40 to 100 °C Baseplate Temperature
• IEC/EN62477-1 OVCIII (300-600W)
• Parallel Operation (1200W)

iQL Series - 72W to 308W - Single Output

• Standard Quarter Brick Footprint
• 18-36 Vdc, 36-76 Vdc Inputs
• 1.2, 2.5, 3.3, 5, 12, 28 Vdc Outputs
• 1500 Vdc Isolation
• Open frame or Baseplate options
• Up to 94% Efficiency

iAF Series - 72.6W to 110W - Single Output

• DOSA Compatible Footprint
• 2.4-5.5 Vdc and 4.5-14 Vdc Inputs
• 0.6-3.63 Vdc, 0.7-5.5 Vdc Outputs
• Non-Isolated
• Excellent Transient Response
• LGA or EPC format
• No external loop tuning components needed

i6A Series - 75W to 250W - Single Output

Recommended

• 1/16th Brick Footprint
• 9-40 Vdc, 9-53 Vdc Inputs
• 3.3 up to 40, -3.3 to -30 Vdc Outputs
• Up to 20 A max Output Current
• Non-Isolated
• Remote ON/OFF, Sense, Power Good, Trim
• Sync, Sequencing

iBH Series - 80W - Single Output

• DOSA Compatible Footprint
• 3.5-14 Vdc Input
• 0.7-5.5 Vdc Output
• Non-Isolated
• Excellent Transient Response
• No external loop tuning components needed

HQA Series - 85W to 120W - Single Output

Recommended

• Standard Quarter Brick Footprint
• 9-40 Vdc, 18-40 Vdc Inputs
• 3.3, 5, 12, 15, 24, 28, 48 Vdc Outputs
• 2250 Vdc Isolation
• -55 to 115°C Baseplate temperature
• MIL-STD-461; 1275; 704; DO-160
• No Optocouplers used

iCH Series - 85W - Single Output

• DOSA Compatible Footprint
• 4.5-14 Vdc Input
• 0.7-8.5 Vdc Output
• Non-Isolated
• Excellent Transient Response
• No external loop tuning components needed

i3A Series - 100W - Single Output

Recommended

• 1/32nd Brick Footprint
• 9-53 Vdc Input
• 3.3-16.5, 5-30 Vdc Adjustable Outputs
• Up to 8 A max Output Current
• Non-Isolated
• Remote ON/OFF, Sense, Power Good, Trim

GQA Series - 120W - Single Output

Recommended

• Standard Quarter Brick Footprint
• 9-36 Vdc, 18-36 Vdc Inputs
• 5, 12, 15, 24, 28, 48 Vdc Outputs
• 1500 Vdc up to 3000 Vdc Isolation
• -40 to 105°C Baseplate temperature
• Open Frame or Encapsulated Construction
• Flanged or Non-flanged Baseplate

iQE Series - 132W to 204W - Single Output

• Standard Quarter Brick Footprint
• 18-60 Vdc, 36-75 Vdc Inputs
• 5, 12, 15 Vdc Outputs
• 1500 Vdc Isolation
• -40 to 125 °C Operating Temperature
• > 90% Efficiency

iAH Series - 150W - Single Output

• DOSA Compatible Footprint
• 3.5-17 Vdc Input
• 0.7-5.5 Vdc Output
• Non-Isolated
• Excellent Transient Response
• No external loop tuning components needed

CN-B Series - 200W to 300W - Single Output

NewRecommended

• Standard Half Brick Footprint
• 43-160Vdc Input
• 12, 13.8, 15, 24 Vdc Outputs
• 3000 Vac Isolation
• Current share function
• IEC61373 Shock & Vibration
• Five year warranty

PYH Series - 200W - Single Output

NewRecommended

• 3000V Input to Output Isolation
• Potted Plastic Case
• Wide Range Input 12:1 (14 - 160VDC)
• Industry Standard Package Sizes
• IEC62368-1, CE and UKCA Mark
• Suitable for Railway and Industrial Applications

DDA Series - 250W to 500W - Single Output / Multiple Output

NewRecommended

• Wide Adjustable Single & Dual Outputs
• 9-40 Vdc, 9-53 Vdc Inputs
• Meets EN55032 Class A
• Cost optimized Non-isolated output
• High Efficiency up to 95%
• Convection Cooled
• Narrow 36.5mm Width

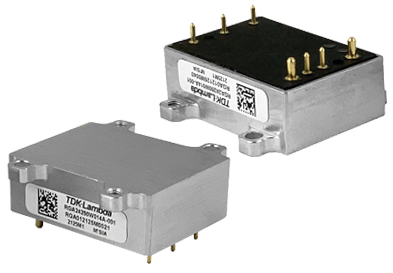

RGA Series - 250W - Single Output

NewRecommended

• 1/16th Brick Footprint
• 9-40 Vdc, 9-53 Vdc Inputs
• 3.3 up to 40 Vdc Outputs
• Up to 20 A max Output Current
• Non-Isolated Step-Down
• -40 to 110 °C Case Temperature
• Rugged 5-sided Aluminum Case

PAF Series - 264W to 702W - Single Output

• Standard Full Brick Footprint
• 18-36 Vdc, 36-76 Vdc, 200-400 Vdc Inputs
• 3.3, 5, 12, 24, 28, 48 Vdc Outputs
• 1500 Vdc, 3000 Vac Isolation
• -40 to 100 °C Baseplate Temperature
• Opto Isolated Remote On / Off

RGC Series - 300W - Single Output

NewRecommended

• Wide 1/16th Footprint
• 9-53 Vdc Inputs
• 5-28, 9.6-48 Vdc Outputs
• Up to 12.5 A max Output Current
• Non-Isolated Step Up/Step Down
• -40 to 110 °C Case Temperature
• Rugged 5-sided Aluminum Case

i7C Series - 300W - Single Output

NewRecommended

• Wide 1/16th Brick Footprint
• 9-36, 9-53 Vdc Input
• 5-28, 8-24, 9.6-48 Vdc Outputs
• Non-Isolated Step Up/Step Down
• -40 to 125 °C Operating Temperature
• Openframe, Baseplate or Heatsink options
• Trim, On/Off, Power Good, Sync, Imon

iEH Series - 300W - Single Output

• Standard Eighth Brick Footprint
• 36-75 Vdc Input
• 10.8, 11.6 and 12 Vdc Outputs
• 2250 Vdc Isolation
• Digital adaptive control
• Constant Switching Frequency

iQG Series - 300W to 504W - Single Output

• Standard Quarter Brick Footprint
• 36-76 Vdc Inputs
• 9.6, 12 Vdc Outputs
• 1500 Vdc Isolation
• Baseplate Cooled
• 94.5% Typical Efficiency
• Droop Load Share Option

i7A Series - 400W to 750W - Single Output

NewRecommended

• Wide 1/16th Brick Footprint
• 9-18, 18-32, 18-60 Vdc Inputs
• 0.8-8, 3.3-18, 3.3-24 Vdc Outputs
• Non-Isolated Step Down
• -40 to 125 °C Operating Temperature
• Openframe, Baseplate or Heatsink options
• Trim, On/Off, Sense, OCP Adjust

iQK Series - 1008W - Single Output

NewRecommended

• Standard Quarter Brick Footprint
• 48-56 Vdc Input
• 11.2 Vdc Output
• 707 Vdc Isolation
• Baseplate Cooled
• 97% Typical Efficiency
• Droop Load Share Option

EZA Series - 2500W to 11,000W - Single Output

NewRecommended

• 1U Rackmount Bidirectional Isolated DC-DC
• 2.5 kW: 48 Vdc (Battery) Û 320 Vdc (Grid)
• 11 kW: 240 Vdc (Battery) Û 320 Vdc (Grid)
• 2.2 kVac up to 3 kVac Isolation
• High Efficiency > 92%
• RS-485 Communications and Control
• For Energy Regeneration applications
