Capacitor Charging Power Supplies

TDK-Lambda is a global supplier of High Voltage programmable capacitor charging and AC-DC power supplies. The ALE series are constant current capacitor charging power supplies that are specifically designed to repetitively charge capacitors in pulse discharge circuit such as modulators and PFNs. These supplies cover power levels from 500J/sec to 30kJ/sec at voltages from 1kV to 50kV in a single unit. Units can be simply operated in parallel for higher power operation.

ALE-OEM Series - 500W to 2000W - Single Output

ALE-OEM Series
  • Reduced package size
  • New patented inverter
  • On-board PFC
  • Reduced parts count
  • Remote control
  • High EMI-RFI immunity
  • Medical safety approvals

ALE-Rack Mount Series - 4000W to 50,000W - Single Output

ALE-Rack Mount Series
  • Compact, lightweight design
  • Simple parallel operation for higher power
  • Worldwide input voltages/frequencies
  • Fully adjustable output voltage
  • Full remote control interface
  • Safety agency approvals

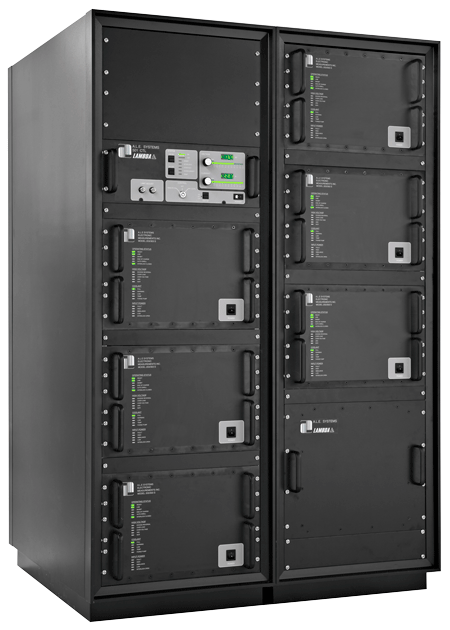

ALE-Systems Series - 60,000W to 1,000,000W - Single Output

ALE-Systems Series
  • 100% Modular/Scalable Design
  • Compact Mechanical Layout
  • High Efficiency
  • Water-cooled
  • Excellent Power Factor
  • Low Ripple
