Products | Programmable Power Supplies

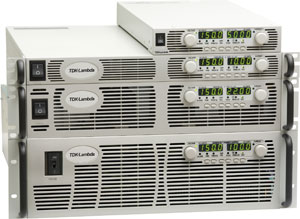

Genesys™ Series
The Genesys™ Programmable DC Power Supply Series provides high power density (from 750W to 15kW) with a complete set of user-friendly interfaces in bench-top or rack-mount profiles and offers Output voltages from 6V to 1500V at Output currents up to 1000A using worldwide AC inputs (with built-in Power Factor Correction).
Multiple remote interfacing methods are available including the built-in Remote Analog Program/Monitor (5V/10V) and Remote Digital (RS-232/RS-485) Interfaces along with the optional LAN (LXI 1.5), USB (2.0), IEEE (488.2 compliant) and Isolated Analog (5V/10V and 4-20mA) Interfaces.
All models are CE and UKCA marked in accordance with the Low Voltage, EMC and RoHS Directives, have worldwide Safety Agency approvals (UL/cUL/IEC/EN 61010-1) and offer a five year warranty.
Features:
- Pout(rated) from 750W (1U) to 15kW (3U)
- Vo(rated) up to 1.5kV; Iout(rated) up to 1000A
- Built-In Safety and Protection Features
- Standard RS-232 / RS-485 / Remote Analog
- Optional LAN (LXI 1.5), USB (2.0)
and IEEE (GPIB) - Optional Isolated 5/10V or 4-20mA Interfaces
- Safety Agency Approvals / 5 Year Warranty
Applications:
| View pdf datasheet | Model Number | Rated Power (Watts) | Output Voltage (V) | Output Current (A) | Ripple mV RMS (5Hz-1MHz) |
Noise mV p-p (<20MHz) |
Efficiency % (100/200 VAC) | Construction |
|---|---|---|---|---|---|---|---|---|
 |
GENH 6-100 | 600 | 0-6 | 0-100 | 8 | 60 | 76/78 | 1U Half Rack |
|
GEN 6-100 | 600 | 0-6 | 0-100 | 8 | 60 | 76/78 | 1U Rack |
|
GENH 8-90 | 720 | 0-8 | 0-90 | 8 | 60 | 78/81 | 1U Half Rack |
|
GEN 8-90 | 720 | 0-8 | 0-90 | 8 | 60 | 78/81 | 1U Rack |
|
GENH 12.5-60 | 750 | 0-12.5 | 0-60 | 8 | 60 | 81/84 | 1U Half Rack |
|
GENH 30-25 | 750 | 0-30 | 0-25 | 8 | 60 | 82/85 | 1U Half Rack |
|
GENH 60-12.5 | 750 | 0-60 | 0-12.5 | 8 | 60 | 83/87 | 1U Half Rack |
|
GENH 100-7.5 | 750 | 0-100 | 0-7.5 | 8 | 80 | 83/87 | 1U Half Rack |
|
GENH 150-5 | 750 | 0-150 | 0-5 | 10 | 100 | 83/87 | 1U Half Rack |
|
GENH 300-2.5 | 750 | 0-300 | 0-2.5 | 25 | 150 | 83/87 | 1U Half Rack |
|
GEN 12.5-60 | 750 | 0-12.5 | 0-60 | 8 | 60 | 81/84 | 1U Rack |
|
GEN 30-25 | 750 | 0-30 | 0-25 | 8 | 60 | 82/85 | 1U Rack |
|
GEN 60-12.5 | 750 | 0-60 | 0-12.5 | 8 | 60 | 83/87 | 1U Rack |
|
GEN 100-7.5 | 750 | 0-100 | 0-7.5 | 8 | 80 | 83/87 | 1U Rack |
|
GEN 150-5 | 750 | 0-150 | 0-5 | 10 | 100 | 83/87 | 1U Rack |
|
GEN 300-2.5 | 750 | 0-300 | 0-2.5 | 25 | 150 | 83/87 | 1U Rack |
|
GENH 20-38 | 760 | 0-20 | 0-38 | 8 | 60 | 82/85 | 1U Half Rack |
|
GENH 40-19 | 760 | 0-40 | 0-19 | 8 | 60 | 83/87 | 1U Half Rack |
|
GENH 80-9.5 | 760 | 0-80 | 0-9.5 | 8 | 60 | 83/87 | 1U Half Rack |
|
GEN 20-38 | 760 | 0-20 | 0-38 | 8 | 60 | 82/85 | 1U Rack |
|
GEN 40-19 | 760 | 0-40 | 0-19 | 8 | 60 | 83/87 | 1U Rack |
|
GEN 80-9.5 | 760 | 0-80 | 0-9.5 | 8 | 60 | 83/87 | 1U Rack |
|
GENH 600-1.3 | 780 | 0-600 | 0-1.3 | 60 | 300 | 83/87 | 1U Half Rack |
|
GEN 600-1.3 | 780 | 0-600 | 0-1.3 | 60 | 300 | 83/87 | 1U Rack |
|
GEN 6-200 | 1200 | 0-6 | 0-200 | 8 | 60 | 77/80 | 1U Rack |
|
GEN 8-180 | 1440 | 0-8 | 0-180 | 8 | 60 | 78/81 | 1U Rack |
|
GEN 12.5-120 | 1500 | 0-12.5 | 0-120 | 8 | 60 | 81/84 | 1U Rack |
|
GEN 30-50 | 1500 | 0-30 | 0-50 | 8 | 60 | 83/86 | 1U Rack |
|
GEN 50-30 | 1500 | 0-50 | 0-30 | 8 | 60 | 84/88 | 1U Rack |
|
GEN 60-25 | 1500 | 0-60 | 0-25 | 8 | 60 | 84/88 | 1U Rack |
|
GEN 100-15 | 1500 | 0-100 | 0-15 | 8 | 80 | 84/88 | 1U Rack |
|
GEN 150-10 | 1500 | 0-150 | 0-10 | 10 | 100 | 84/88 | 1U Rack |
|
GEN 300-5 | 1500 | 0-300 | 0-5 | 25 | 150 | 83/87 | 1U Rack |
|
GEN 20-76 | 1520 | 0-20 | 0-76 | 8 | 60 | 83/86 | 1U Rack |
|
GEN 40-38 | 1520 | 0-40 | 0-38 | 8 | 60 | 84/88 | 1U Rack |
|
GEN 80-19 | 1520 | 0-80 | 0-19 | 8 | 60 | 84/88 | 1U Rack |
|
GEN 600-2.6 | 1560 | 0-600 | 0-2.6 | 60 | 300 | 83/87 | 1U Rack |
|
GEN 8-300 | 2400 | 0-8 | 0-300 | 8 | 60 | 84 | 1U Rack |
|
GEN 10-240 | 2400 | 0-10 | 0-240 | 8 | 60 | 84 | 1U Rack |
|
GEN 16-150 | 2400 | 0-16 | 0-150 | 8 | 60 | 86 | 1U Rack |
|
GEN 20-120 | 2400 | 0-20 | 0-120 | 8 | 60 | 86 | 1U Rack |
|
GEN 30-80 | 2400 | 0-30 | 0-80 | 8 | 60 | 88 | 1U Rack |
|
GEN 40-60 | 2400 | 0-40 | 0-60 | 8 | 60 | 88 | 1U Rack |
|
GEN 60-40 | 2400 | 0-60 | 0-40 | 8 | 60 | 88 | 1U Rack |
|
GEN 80-30 | 2400 | 0-80 | 0-30 | 8 | 80 | 88 | 1U Rack |
|
GEN 100-24 | 2400 | 0-100 | 0-24 | 8 | 80 | 88 | 1U Rack |
|
GEN 150-16 | 2400 | 0-150 | 0-16 | 25 | 100 | 88 | 1U Rack |
|
GEN 300-8 | 2400 | 0-300 | 0-8 | 50 | 200 | 88 | 1U Rack |
|
GEN 600-4 | 2400 | 0-600 | 0-4 | 75 | 300 | 87 | 1U Rack |
|
GEN 8-400 | 3200 | 0-8 | 0-400 | 8 | 60 | 82 | 2U Rack |
|
GEN 10-330 | 3300 | 0-10 | 0-330 | 8 | 60 | 84 | 2U Rack |
|
GEN 15-220 | 3300 | 0-15 | 0-220 | 8 | 60 | 84 | 2U Rack |
|
GEN 20-165 | 3300 | 0-20 | 0-165 | 8 | 60 | 86 | 2U Rack |
|
GEN 30-110 | 3300 | 0-30 | 0-110 | 8 | 60 | 86 | 2U Rack |
|
GEN 60-55 | 3300 | 0-60 | 0-55 | 8 | 60 | 88 | 2U Rack |
|
GEN 100-33 | 3300 | 0-100 | 0-33 | 8 | 80 | 88 | 2U Rack |
|
GEN 150-22 | 3300 | 0-150 | 0-22 | 25 | 100 | 88 | 2U Rack |
|
GEN 200-16.5 | 3300 | 0-200 | 0-16.5 | 70 | 275 | 88 | 2U Rack |
|
GEN 300-11 | 3300 | 0-300 | 0-11 | 100 | 300 | 88 | 2U Rack |
|
GEN 600-5.5 | 3300 | 0-600 | 0-5.5 | 120 | 500 | 87 | 2U Rack |
|
GEN 80-42 | 3360 | 0-80 | 0-42 | 8 | 80 | 88 | 2U Rack |
|
GEN 40-85 | 3400 | 0-40 | 0-85 | 8 | 60 | 88 | 2U Rack |
|
GEN 8-600 | 4800 | 0-8 | 0-600 | 10 | 75 | 84 | 2U Rack |
|
GEN 16-310 | 4960 | 0-16 | 0-310 | 10 | 75 | 84 | 2U Rack |
|
GEN 10-500 | 5000 | 0-10 | 0-500 | 10 | 75 | 84 | 2U Rack |
|
GEN 20-250 | 5000 | 0-20 | 0-250 | 10 | 75 | 86 | 2U Rack |
|
GEN 40-125 | 5000 | 0-40 | 0-125 | 10 | 75 | 88 | 2U Rack |
|
GEN 100-50 | 5000 | 0-100 | 0-50 | 15 | 100 | 88 | 2U Rack |
|
GEN 200-25 | 5000 | 0-200 | 0-25 | 45 | 200 | 88 | 2U Rack |
|
GEN 500-10 | 5000 | 0-500 | 0-10 | 70 | 300 | 88 | 2U Rack |
|
GEN 30-170 | 5100 | 0-30 | 0-170 | 10 | 75 | 86 | 2U Rack |
|
GEN 60-85 | 5100 | 0-60 | 0-85 | 10 | 75 | 90 | 2U Rack |
|
GEN 150-34 | 5100 | 0-150 | 0-34 | 25 | 120 | 88 | 2U Rack |
|
GEN 300-17 | 5100 | 0-300 | 0-17 | 35 | 200 | 88 | 2U Rack |
|
GEN 600-8.5 | 5100 | 0-600 | 0-8.5 | 120 | 500 | 88 | 2U Rack |
|
GEN 80-65 | 5200 | 0-80 | 0-65 | 12 | 80 | 88 | 2U Rack |
|
GEN 400-13 | 5200 | 0-400 | 0-13 | 70 | 350 | 88 | 2U Rack |
|
GEN 7.5-1000 | 7500 | 0-7.5 | 0-1000 | 20 | 60 | 77 | 3U Rack |
|
GEN 150-66 | 9900 | 0-150 | 0-66 | 25 | 150 | 83 | 3U Rack |
|
GEN 300-33 | 9900 | 0-300 | 0-33 | 60 | 200 | 83 | 3U Rack |
|
GEN 10-1000 | 10000 | 0-10 | 0-1000 | 20 | 60 | 83 | 3U Rack |
|
GEN 12.5-800 | 10000 | 0-12.5 | 0-800 | 20 | 60 | 83 | 3U Rack |
|
GEN 20-500 | 10000 | 0-20 | 0-500 | 20 | 60 | 83 | 3U Rack |
|
GEN 25-400 | 10000 | 0-25 | 0-400 | 20 | 60 | 83 | 3U Rack |
|
GEN 30-333 | 10000 | 0-30 | 0-333 | 20 | 60 | 83 | 3U Rack |
|
GEN 40-250 | 10000 | 0-40 | 0-250 | 20 | 60 | 83 | 3U Rack |
|
GEN 50-200 | 10000 | 0-50 | 0-200 | 20 | 75 | 83 | 3U Rack |
|
GEN 60-167 | 10000 | 0-60 | 0-167 | 20 | 75 | 83 | 3U Rack |
|
GEN 80-125 | 10000 | 0-80 | 0-125 | 25 | 100 | 83 | 3U Rack |
|
GEN 100-100 | 10000 | 0-100 | 0-100 | 25 | 100 | 83 | 3U Rack |
|
GEN 125-80 | 10000 | 0-125 | 0-80 | 25 | 100 | 83 | 3U Rack |
|
GEN 200-50 | 10000 | 0-200 | 0-50 | 35 | 175 | 83 | 3U Rack |
|
GEN 250-40 | 10000 | 0-250 | 0-40 | 35 | 200 | 83 | 3U Rack |
|
GEN 400-25 | 10000 | 0-400 | 0-25 | 60 | 300 | 83 | 3U Rack |
|
GEN 500-20 | 10000 | 0-500 | 0-20 | 60 | 350 | 83 | 3U Rack |
|
GEN 800-12.5 | 10000 | 0-800 | 0-12.5 | 80 | 700 | 93.5 | 3U Rack |
|
GEN 1000-10 | 10000 | 0-1000 | 0-10 | 100 | 800 | 93.5 | 3U Rack |
|
GEN 1250-8.0 | 10000 | 0-1250 | 0-8.0 | 120 | 1000 | 93.5 | 3U Rack |
|
GEN 1500-6.7 | 10000 | 0-1500 | 0-6.7 | 140 | 1400 | 93.5 | 3U Rack |
|
GEN 600-17 | 10200 | 0-600 | 0-17 | 60 | 350 | 83 | 3U Rack |
|
GEN 30-500 | 15000 | 0-30 | 0-500 | 20 | 60 | 88 | 3U Rack |
|
GEN 40-375 | 15000 | 0-40 | 0-375 | 20 | 60 | 88 | 3U Rack |
|
GEN 50-300 | 15000 | 0-50 | 0-300 | 20 | 75 | 88 | 3U Rack |
|
GEN 60-250 | 15000 | 0-60 | 0-250 | 20 | 75 | 88 | 3U Rack |
|
GEN 80-187.5 | 15000 | 0-80 | 0-187.5 | 25 | 100 | 88 | 3U Rack |
|
GEN 100-150 | 15000 | 0-100 | 0-150 | 25 | 100 | 88 | 3U Rack |
|
GEN 125-120 | 15000 | 0-125 | 0-120 | 25 | 100 | 88 | 3U Rack |
|
GEN 150-100 | 15000 | 0-150 | 0-100 | 25 | 150 | 88 | 3U Rack |
|
GEN 200-75 | 15000 | 0-200 | 0-75 | 35 | 175 | 88 | 3U Rack |
|
GEN 250-60 | 15000 | 0-250 | 0-60 | 35 | 200 | 88 | 3U Rack |
|
GEN 300-50 | 15000 | 0-300 | 0-50 | 60 | 200 | 88 | 3U Rack |
|
GEN 400-37.5 | 15000 | 0-400 | 0-37.5 | 60 | 300 | 88 | 3U Rack |
|
GEN 500-30 | 15000 | 0-500 | 0-30 | 60 | 350 | 88 | 3U Rack |
|
GEN 600-25 | 15000 | 0-600 | 0-25 | 60 | 350 | 88 | 3U Rack |
|
GEN 800-18.8 | 15000 | 0-800 | 0-18.8 | 80 | 700 | 93.5 | 3U Rack |
|
GEN 1000-15 | 15000 | 0-1000 | 0-15 | 100 | 800 | 93.5 | 3U Rack |
|
GEN 1250-12.0 | 15000 | 0-1250 | 0-12.0 | 120 | 1000 | 93.5 | 3U Rack |
|
GEN 1500-10.0 | 15000 | 0-1500 | 0-10.0 | 140 | 1400 | 93.5 | 3U Rack |
