Products | Programmable Power Supplies

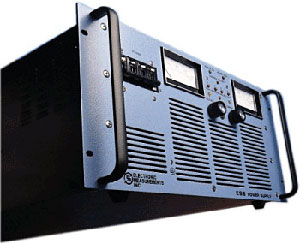

ESS
Please note: This product is not recommended for new designs. We recommend our Genesys™ or GENESYS+™ series.
Since its introduction in 1995, the ESS has evolved into one of the most reliable, compact, high power Constant Voltage, Constant Current Programmable power supplies available. It features a pulse-by-pulse current limit which provides excellent performance in demanding high current applications such as RF Amplifiers, DC Motors and Magnetic Coils. The many standard features make it an excellent choice for both OEM and laboratory applications.
Features:
- Front Panel Adjustable OVP protects load
- Pulse-by-Pulse Current Limit for fast recovery
- Parallel or Series Operation
- Ten Turn V/I Potentiometers standard
- Power Factor 0.9, Efficiency 85%
- Failsafe Soft Start
- Five Year Warranty
Applications:
| View pdf datasheet | Model Number | Rated Power (Watts) | Output Voltage (V) | Output Current (A) | Ripple mV p-p (PARD) |
|---|---|---|---|---|---|
 |
ESS 7.5-1000 | 7500 | 0-7.5 | 0-1000 | 50 |
|
ESS 10-1000 | 10000 | 0-10 | 0-1000 | 50 |
|
ESS 100-100 | 10000 | 0-100 | 0-100 | 75 |
|
ESS 12.5-800 | 10000 | 0-12.5 | 0-800 | 50 |
|
ESS 125-80 | 10000 | 0-125 | 0-80 | 75 |
|
ESS 160-62 | 10000 | 0-160 | 0-62 | 75 |
|
ESS 20-500 | 10000 | 0-20 | 0-500 | 60 |
|
ESS 200-50 | 10000 | 0-200 | 0-50 | 75 |
|
ESS 220-46 | 10000 | 0-220 | 0-46 | 75 |
|
ESS 25-400 | 10000 | 0-25 | 0-400 | 60 |
|
ESS 250-40 | 10000 | 0-250 | 0-40 | 125 |
|
ESS 30-333 | 10000 | 0-30 | 0-333 | 60 |
|
ESS 300-33 | 10000 | 0-300 | 0-33 | 125 |
|
ESS 33-300 | 10000 | 0-33 | 0-300 | 60 |
|
ESS 350-40 | 10000 | 0-350 | 0-40 | 125 |
|
ESS 40-250 | 10000 | 0-40 | 0-250 | 75 |
|
ESS 400-25 | 10000 | 0-400 | 0-25 | 200 |
|
ESS 50-200 | 10000 | 0-50 | 0-200 | 75 |
|
ESS 500-20 | 10000 | 0-500 | 0-20 | 300 |
|
ESS 60-165 | 10000 | 0-60 | 0-165 | 75 |
|
ESS 600-16 | 10000 | 0-600 | 0-16 | 300 |
|
ESS 10-1400 | 14000 | 0-10 | 0-1400 | 50 |
|
ESS 100-150 | 15000 | 0-100 | 0-150 | 75 |
|
ESS 125-120 | 15000 | 0-125 | 0-120 | 75 |
|
ESS 160-93 | 15000 | 0-160 | 0-93 | 75 |
|
ESS 20-750 | 15000 | 0-20 | 0-750 | 60 |
|
ESS 200-75 | 15000 | 0-200 | 0-75 | 75 |
|
ESS 250-60 | 15000 | 0-250 | 0-60 | 125 |
|
ESS 30-500 | 15000 | 0-30 | 0-500 | 60 |
|
ESS 300-50 | 15000 | 0-300 | 0-50 | 125 |
|
ESS 330-45 | 15000 | 0-330 | 0-45 | 125 |
|
ESS 40-375 | 15000 | 0-40 | 0-375 | 75 |
|
ESS 400-37 | 15000 | 0-400 | 0-37 | 20 |
|
ESS 50-300 | 15000 | 0-50 | 0-300 | 75 |
|
ESS 500-30 | 15000 | 0-500 | 0-30 | 300 |
|
ESS 60-250 | 15000 | 0-60 | 0-250 | 75 |
|
ESS 600-25 | 15000 | 0-600 | 0-25 | 300 |
|
ESS 80-125 | 15000 | 0-80 | 0-125 | 75 |
|
ESS 80-185 | 15000 | 0-80 | 0-185 | 75 |
