GENESYS+™ Series

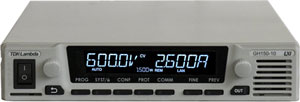

The GENESYS+™ Bench-Top/Rack-Mount Advanced Programmable DC Power Supply Series provides advanced features in light-weight portable high power density profiles with a comprehensive set of built-in user-friendly interfaces that include a multi-functional front panel, LAN (LXI 1.5), USB (2.0), RS-232/RS-485 and Isolated Analog (5V/10V), several optional digital communication interfaces (IEEE, EtherCAT or Modbus-TCP) and an optional Isolated Analog 4-20mA (IS420) Interface.

Output power levels cover 1kW/1.5kW in a 1U Half-Rack profile (GH platform),1kW/1.7kW/2.7kW/3.4kW/5kW/7.5kW in 1U (G platform),10kW/15kWW in 2U/3U (GSP platform) and 15kW/22.5kW in 2U/3U (GSPL platform) full-rack profiles, offer low-noise performance and have Output voltages from 10V to 1500V (with rated Output currents up to 1500A).

AC Input options have built-in Active Power Factor Correction (0.99/0.94 typical @ rated load) and are offered in single-phase 85-265VAC, single-phase 230VAC, three-phase 208VAC, or a wide-range three-phase 400VAC/480VAC Input.

Advanced features include Programmable V/I Slew-Rate control, Constant-Power Limit control, Arbitrary Waveform Generator w/ Auto-Trigger, Internal Resistance Programming, Pre-Load On/Off control, Trigger In/Out control and Control Pins for Output Disconnect/Polarity Reversal.

Other mechanical options/accessories include an optional Blank Front Panel (where the front panel display and controls are not required), Air Filter Kits for dusty environments and Parallel Kits to parallel multiple units.

All models are CE/UKCA Marked in accordance with the Low Voltage, EMC and RoHS Directives, have worldwide Safety Agency approvals (UL/cUL/IEC/EN 61010-1) and offer a five year warranty.

Features:

Lightweight high-power density
VO(rated) to 1500V; IO(rated) to 1500A
Advanced Features Built-In
Built-In LAN, USB, RS-232/485
and Isolated 5V/10V
Optional IEEE, ECAT, Modbus-TCP
and Isolated 4-20mA
Safety Agency Approvals / 5 Year Warranty

Applications:

Model Number	Rated Power (Watts)	Output Voltage (V)	Output Current (A)	Ripple mV RMS (5Hz-1MHz)	Noise mV p-p (<20MHz)	Efficiency % (100VAC/200VAC)	Construction
GH10-100	1000	0-10	0-100	6	50	86/88	1U Half-Rack
GH10-150	1500	0-10	0-150	6	50	86/88	1U Half-Rack
GH20-50	1000	0-20	0-50	6	50	87/89	1U Half-Rack
GH20-75	1500	0-20	0-75	6	50	87/89	1U Half-Rack
GH30-34	1020	0-30	0-34	6	50	87/89	1U Half-Rack
GH30-50	1500	0-30	0-50	6	50	87/89	1U Half-Rack
GH40-25	1000	0-40	0-25	7	60	87/89	1U Half-Rack
GH40-38	1520	0-40	0-38	7	60	87/89	1U Half-Rack
GH60-17	1020	0-60	0-17	7	60	87/89	1U Half-Rack
GH60-25	1500	0-60	0-25	7	60	87/89	1U Half-Rack
GH80-12.5	1000	0-80	0-12.5	10	75	87/89	1U Half-Rack
GH80-19	1520	0-80	0-19	8	75	87/89	1U Half-Rack
GH100-10	1000	0-100	0-10	20	75	88/90	1U Half-Rack
GH100-15	1500	0-100	0-15	30	130	88/90	1U Half-Rack
GH150-7	1050	0-150	0-7	20	75	88/90	1U Half-Rack
GH150-10	1500	0-150	0-10	10	75	88/90	1U Half-Rack
GH300-3.5	1050	0-300	0-3.5	50	200	88/90	1U Half-Rack
GH300-5	1500	0-300	0-5	45	180	88/90	1U Half-Rack
GH600-1.7	1020	0-600	0-1.7	50	500	88/90	1U Half-Rack
GH600-2.6	1560	0-600	0-2.6	100	500	88/90	1U Half-Rack

Model Number	Rated Power (Watts)	Output Voltage (V)	Output Current (A)	Ripple mV RMS (5Hz-1MHz)	Noise mV p-p (<20MHz)	Efficiency % (100V/200VAC)¹ (200VAC/380VAC)	Construction
G10-100	1000	0-10	0-100	6	50	86/88¹	1U Full-Rack
G10-170	1500	0-10	0-150	6	50	86/88¹	1U Full-Rack
G10-265	2650	0-10	0-265	8	75	88/88	1U Full-Rack
G10-340	3400	0-10	0-340	8	75	88/88	1U Full-Rack
G10-500	5000	0-10	0-500	8	75	88.5/89	1U Full-Rack
G20-50	1000	0-20	0-50	6	50	87/89¹	1U Full-Rack
G20-85	1700	0-20	0-85	6	50	87/89¹	1U Full-Rack
G20-135	2700	0-20	0-135	10	75	89/89	1U Full-Rack
G20-170	3400	0-20	0-170	10	75	89/89	1U Full-Rack
G20-250	5000	0-20	0-250	10	75	91/91	1U Full-Rack
G20-375	7500	0-20	0-375	10	80	91/91	1U Full-Rack
G30-34	1020	0-30	0-34	6	50	87/89¹	1U Full-Rack
G30-56	1680	0-30	0-56	6	50	87/89¹	1U Full-Rack
G30-90	2700	0-30	0-90	10	75	89.5/89.5	1U Full-Rack
G30-112	3360	0-30	0-112	10	75	89.5/89.5	1U Full-Rack
G30-170	5100	0-30	0-170	12	75	91/91	1U Full-Rack
G30-250	7500	0-30	0-250	10	80	91/91	1U Full-Rack
G40-25	1000	0-40	0-25	7	60	87/89¹	1U Full-Rack
G40-42	1680	0-40	0-42	7	60	87/89¹	1U Full-Rack
G40-68	2720	0-40	0-68	12	75	90/90	1U Full-Rack
G40-85	3400	0-40	0-85	12	75	90/90	1U Full-Rack
G40-125	5000	0-40	0-125	12	75	91/91	1U Full-Rack
G40-188	7520	0-40	0-188	8	80	91/91	1U Full-Rack
G50-100	5000	0-50	0-100	12	75	90/90	1U Full-Rack
G60-17	1020	0-60	0-17	7	60	87/89¹	1U Full-Rack
G60-28	1680	0-60	0-28	7	60	87/89¹	1U Full-Rack
G60-45	2700	0-60	0-45	15	80	90/90	1U Full-Rack
G60-56	3360	0-60	0-56	15	80	90/90	1U Full-Rack
G60-85	5100	0-60	0-85	12	75	91/91	1U Full-Rack
G60-125	7500	0-60	0-125	12	80	91/91	1U Full-Rack
G80-12.5	1000	0-80	0-12.5	10	75	87/89¹	1U Full-Rack
G80-21	1680	0-80	0-21	10	75	87/89¹	1U Full-Rack
G80-34	2720	0-80	0-34	15	80	90.5/90.5	1U Full-Rack
G80-42	3360	0-80	0-42	15	80	90.5/90.5	1U Full-Rack
G80-65	5200	0-80	0-65	15	80	91/91	1U Full-Rack
G80-94	7520	0-80	0-94	15	90	91/91	1U Full-Rack
G100-10	1000	0-100	0-10	12	75	88/90¹	1U Full-Rack
G100-17	1700	0-100	0-17	12	75	88/90¹	1U Full-Rack
G100-27	2700	0-100	0-27	15	100	90.5/90.5	1U Full-Rack
G100-34	3400	0-100	0-34	15	100	90.5/90.5	1U Full-Rack
G100-50	5000	0-100	0-50	15	90	91/91	1U Full-Rack
G100-75	7500	0-100	0-75	15	90	91/91	1U Full-Rack
G150-7	1050	0-150	0-7	9	75	88/90¹	1U Full-Rack
G150-11.2	1680	0-150	0-11.2	8	75	88/90¹	1U Full-Rack
G150-18	2700	0-150	0-18	20	120	90.5/90.5	1U Full-Rack
G150-22.5	3375	0-150	0-22.5	20	120	90.5/90.5	1U Full-Rack
G150-34	5100	0-150	0-34	20	120	91/91	1U Full-Rack
G150-50	7500	0-150	0-50	20	150	91/91	1U Full-Rack
G200-25	5000	0-200	0-25	45	200	91/91	1U Full-Rack
G200-37.5	7500	0-200	0-37.5	45	250	91/91	1U Full-Rack
G300-3.5	1050	0-300	0-3.5	20	120	88/90¹	1U Full-Rack
G300-5.6	1680	0-300	0-5.6	20	120	88/90¹	1U Full-Rack
G300-9	2700	0-300	0-9	60	200	90.5/90.5	1U Full-Rack
G300-11.5	3450	0-300	0-11.5	60	200	90.5/90.5	1U Full-Rack
G300-17	5100	0-300	0-17	60	200	92/92	1U Full-Rack
G300-25	7500	0-300	0-25	60	250	91/91	1U Full-Rack
G400-13	5200	0-400	0-13	80	400	92/92	1U Full-Rack
G500-10	5000	0-500	0-10	80	450	92/92	1U Full-Rack
G600-1.7	1020	0-600	0-1.7	100	500	88/90¹	1U Full-Rack
G600-2.8	1680	0-600	0-2.8	100	500	88/90¹	1U Full-Rack
G600-4.5	2700	0-600	0-4.5	100	480	90.5/90.5	1U Full-Rack
G600-5.6	3360	0-600	0-5.6	100	480	90.5/90.5	1U Full-Rack
G600-8.5	5100	0-600	0-8.5	100	480	92/92	1U Full-Rack
G600-12.5	7500	0-600	0-12.5	100	450	92/92	1U Full-Rack
G1000-5	5000	0-1000	0-5	200	900	92/92	1U Full-Rack
G1000-7.5	7500	0-1000	0-7.5	250	1100	92/92	1U Full-Rack
G1500-3.4	5100	0-1500	0-3.4	200	900	92/92	1U Full-Rack
G1500-5	7500	0-1500	0-5	500	1300	92/92	1U Full-Rack

Model Number	Rated Power (Watts)	Output Voltage (V)	Output Current (A)	Ripple mV RMS (5Hz-1MHz)	Noise mV p-p (<20MHz)	Efficiency % (200VAC/380VAC)	Construction
GSP10-1000	10000	0-10	0-1000	8	75	89/89	2U Full-Rack
GSP10-1500	15000	0-10	0-1500	8	75	89/89	3U Full-Rack
GSP20-500	10000	0-20	0-5000	10	75	90/90	2U Full-Rack
GSP20-750	15000	0-20	0-750	10	75	90/90	3U Full-Rack
GSP30-340	10200	0-30	0-340	12	75	91/91	2U Full-Rack
GSP30-510	15300	0-30	0-510	12	75	91/91	3U Full-Rack
GSP40-250	10000	0-40	0-250	12	75	91/91	2U Full-Rack
GSP40-375	15000	0-40	0-375	12	75	91/91	3U Full-Rack
GSP50-200	10000	0-50	0-200	12	75	91/91	2U Full-Rack
GSP50-300	15000	0-50	0-300	12	75	91/91	3U Full-Rack
GSP60-170	10200	0-60	0-170	12	75	91/91	2U Full-Rack
GSP60-250	15000	0-60	0-250	12	75	91/91	3U Full-Rack
GSP80-130	10400	0-80	0-130	15	80	91/91	2U Full-Rack
GSP80-195	15600	0-80	0-195	15	80	91/91	3U Full-Rack
GSP100-100	10000	0-100	0-100	15	90	91/91	2U Full-Rack
GSP100-150	15000	0-100	0-150	15	90	91/91	3U Full-Rack
GSP150-68	10200	0-150	0-68	20	120	91/91	2U Full-Rack
GSP150-102	15300	0-150	0-102	20	120	91/91	3U Full-Rack
GSP200-50	10000	0-200	0-50	45	200	91/91	2U Full-Rack
GSP200-75	15000	0-200	0-75	45	200	91/91	3U Full-Rack
GSP300-34	10200	0-300	0-34	60	200	92/92	2U Full-Rack
GSP300-51	15300	0-300	0-51	60	200	92/92	3U Full-Rack
GSP400-26	10400	0-400	0-26	80	400	92/92	2U Full-Rack
GSP400-39	15600	0-400	0-39	80	400	92/92	3U Full-Rack
GSP500-20	10000	0-500	0-20	80	450	91/91	2U Full-Rack
GSP500-30	15000	0-500	0-30	80	450	91/91	3U Full-Rack
GSP600-17	10200	0-600	0-17	100	480	92/92	2U Full-Rack
GSP600-25.5	15300	0-600	0-25.5	100	480	92/92	3U Full-Rack

Model Number	Rated Power (Watts)	Output Voltage (V)	Output Current (A)	Ripple mV RMS (5Hz-1MHz)	Noise mV p-p (<20MHz)	Efficiency % (200VAC/380VAC)	Construction
GSPL20-750	15000	0-20	0-750	10	80	91/91	2U Full-Rack
GSPL20-1125	22500	0-20	0-1125	10	80	91/91	3U Full-Rack
GSPL30-500	15000	0-30	0-500	10	80	91/91	2U Full-Rack
GSP30-750	22500	0-30	0-750	10	80	91/91	3U Full-Rack
GSPL40-376	15040	0-40	0-376	10	80	91/91	2U Full-Rack
GSPL40-564	22560	0-40	0-564	10	80	91/91	3U Full-Rack
GSPL60-250	15000	0-60	0-250	12	80	91/91	2U Full-Rack
GSPL60-375	22500	0-60	0-375	12	80	91/91	3U Full-Rack
GSPL80-188	15040	0-80	0-188	15	90	91/91	2U Full-Rack
GSPL80-282	22560	0-80	0-282	15	90	91/91	3U Full-Rack
GSPL100-150	15000	0-100	0-150	15	90	91/91	2U Full-Rack
GSPL100-225	22500	0-100	0-225	15	90	91/91	3U Full-Rack
GSPL150-100	15000	0-150	0-100	20	150	91/91	2U Full-Rack
GSPL150-150	22500	0-150	0-150	20	150	91/91	3U Full-Rack
GSPL200-75	15000	0-200	0-75	45	250	91/91	2U Full-Rack
GSP200-112.5	22500	0-200	0-112.5	45	250	91/91	3U Full-Rack
GSPL300-50	15000	0-300	0-50	60	250	92/92	2U Full-Rack
GSPL300-75	22500	0-300	0-75	60	250	92/92	3U Full-Rack
GSPL600-25	15000	0-600	0-25	100	450	92/92	2U Full-Rack
GSPL600-37.5	22500	0-600	0-37.5	100	450	92/92	3U Full-Rack
GSPL1000-15	15000	0-1000	0-15	400	1400	92/92	2U Full-Rack
GSPL1000-22.5	22500	0-1000	0-22.5	550	2000	92/92	3U Full-Rack
GSPL1500-10	15000	0-1500	0-10	600	1700	92/92	2U Full-Rack
GSPL1500-15	22500	0-1500	0-15	700	2500	92/92	3U Full-Rack
