San Diego, CA – September 2017 –

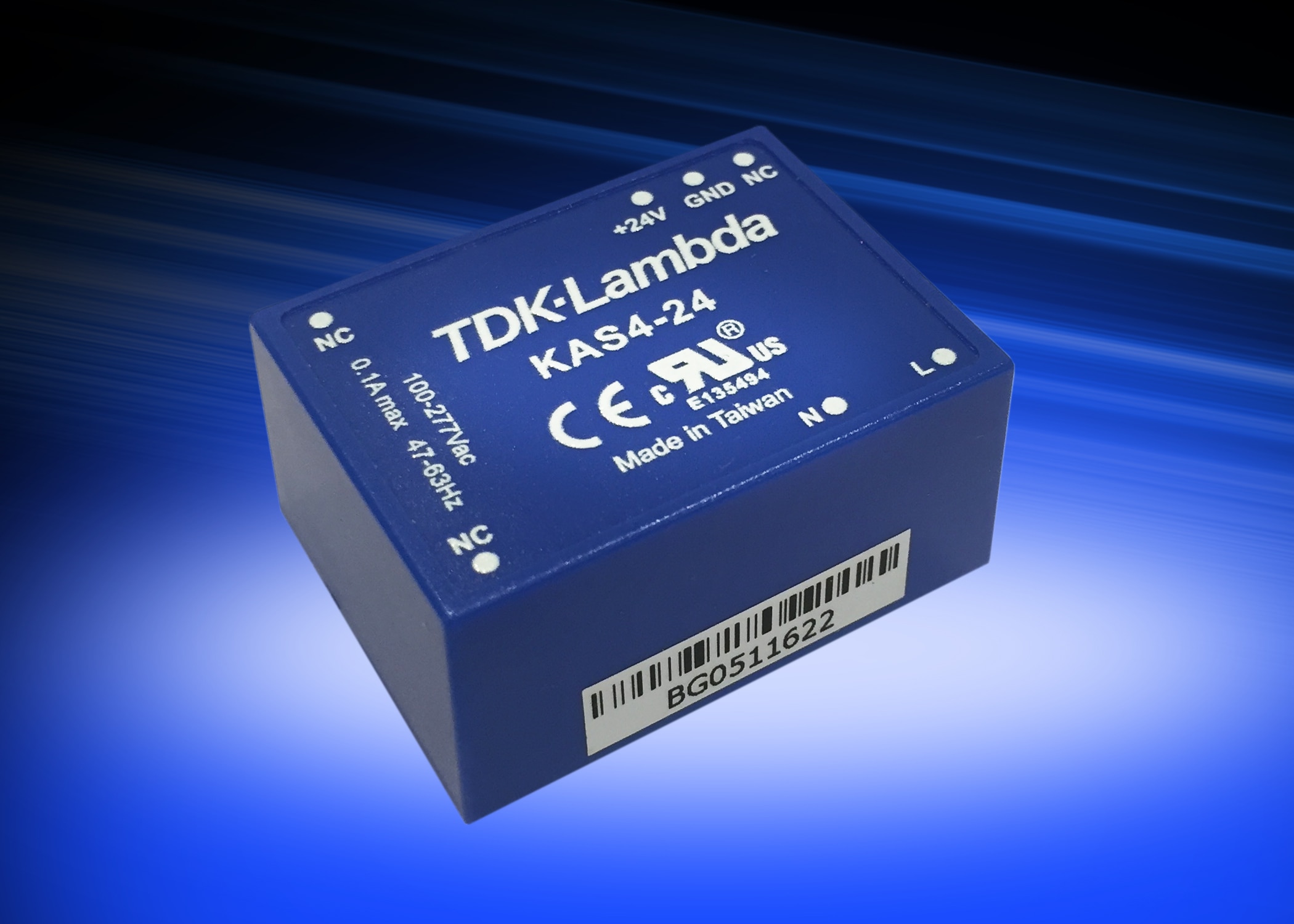

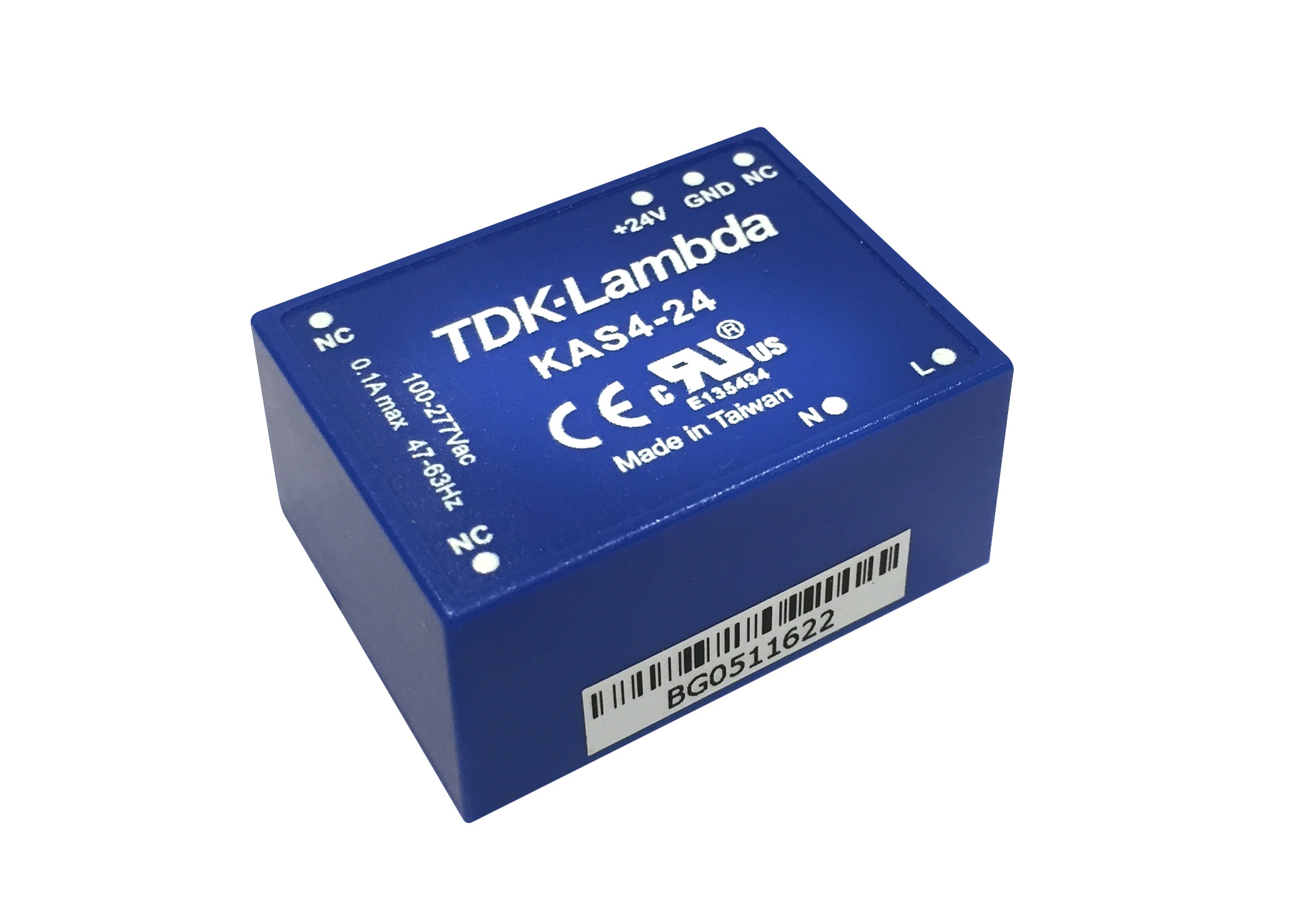

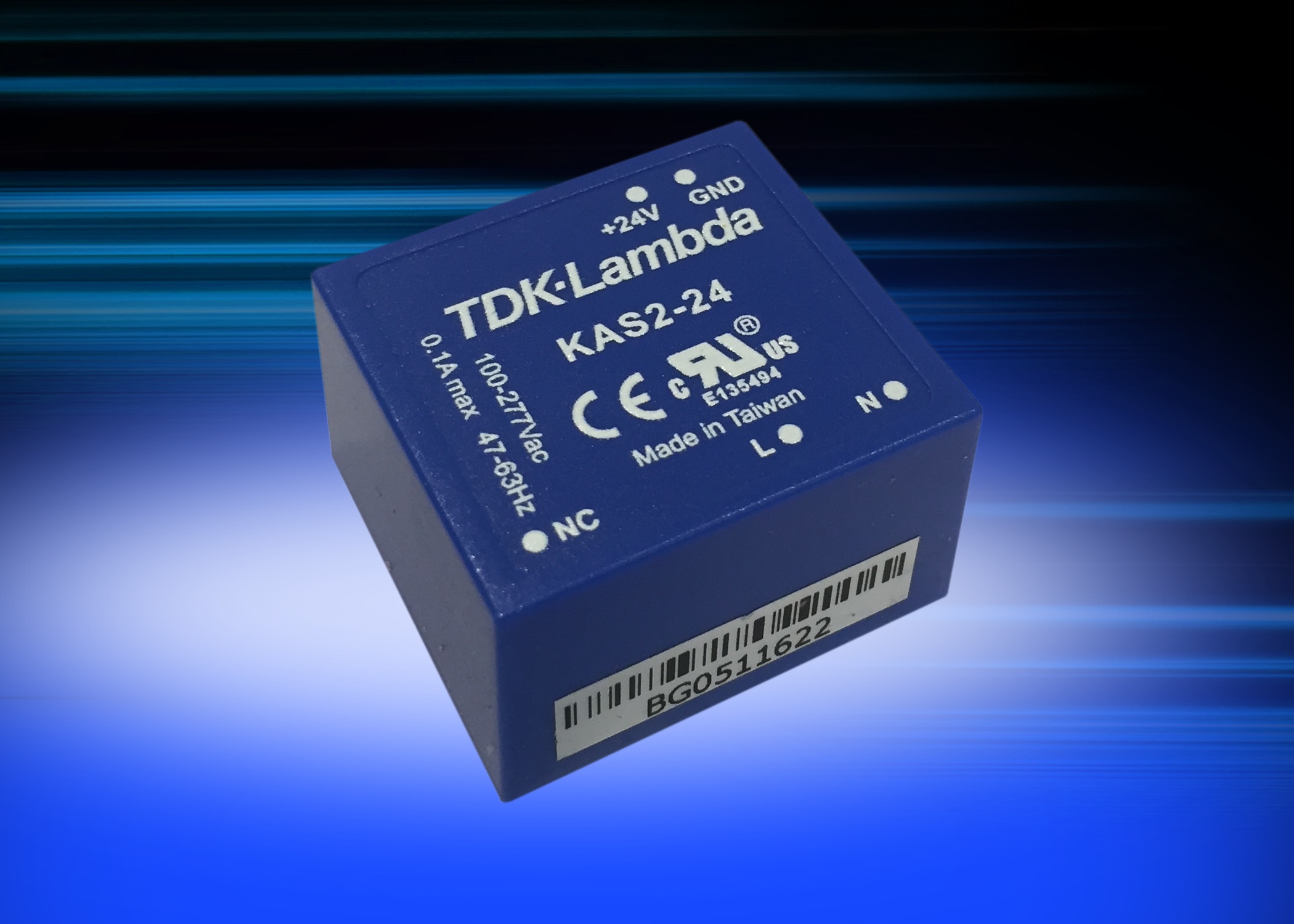

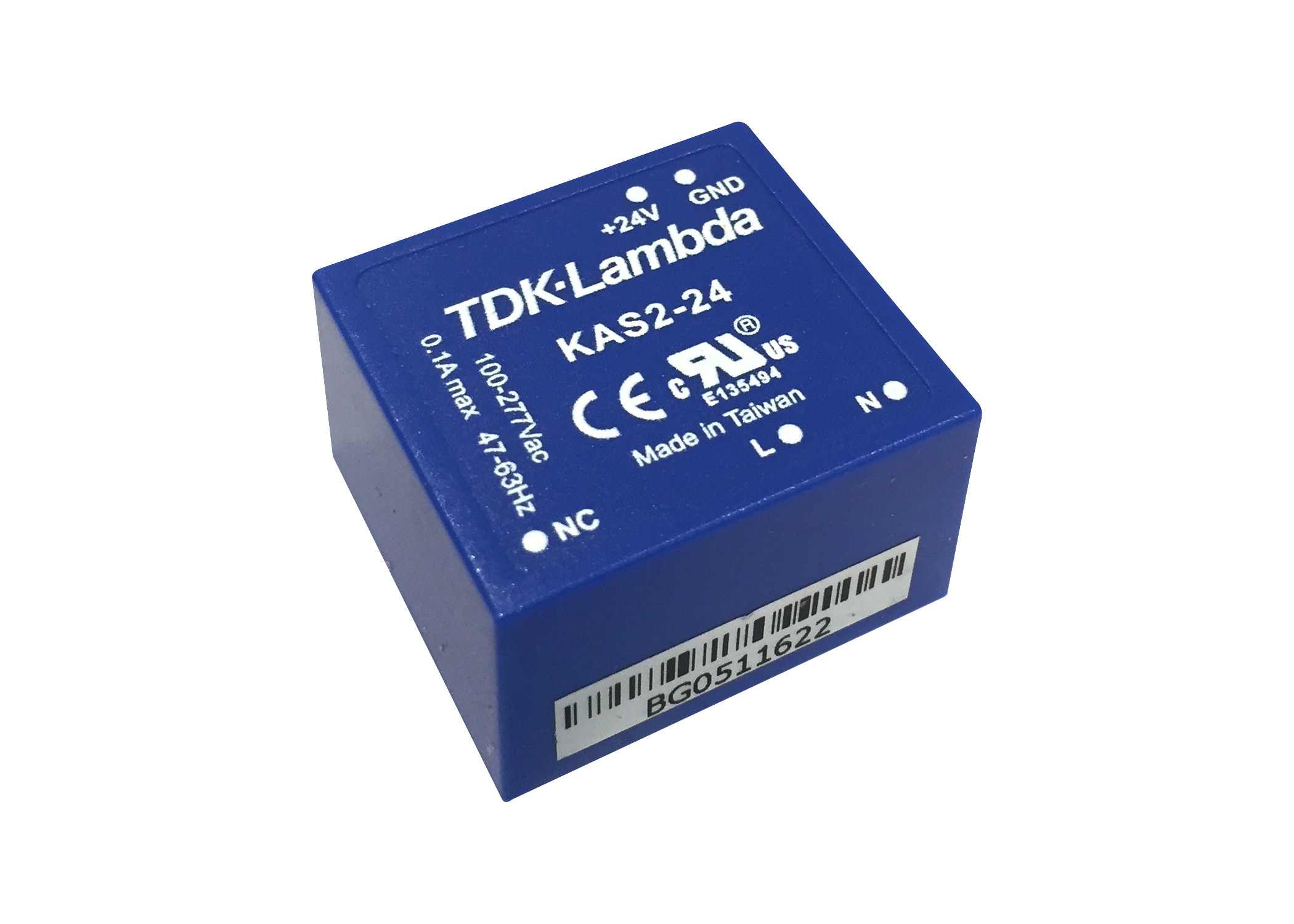

TDK Corporation announces the introduction of the KAS series AC-DC power supplies, rated at 2W and 4W. Accepting a very wide 90 to 305Vac, 47-440Hz input, these board mounted converters will operate from 115V, 230V and 277V nominal inputs. Target applications include security systems, building automation, professional household appliances, portable equipment and products requiring a separate standby voltage.
The series has a double insulated Class II construction, requiring no earth ground connection and has a 3,000Vac primary to secondary isolation. Available output voltages are 3.3, 5, 8, 9, 12, 14, 15 and 24V and have a no-load power consumption of less than 300mW. The KAS units are encapsulated in a plastic resin fiberglass case, providing additional protection against shock and vibration. The 2W KAS2 measures 28.5 x 25.8 x 17.0 mm and the 4W KAS4 37.0 x 27.5 x 17.5 mm.
The KAS2 will operate in ambient temperatures of -40 to +80°C, derating linearly to 40% load above 60°C. The KAS4 has a temperature range of up to -40 to +70°C, with model dependent derating. All the power supplies are certified to IEC/EN/UL/CSA 60950-1 and are designed to meet IEC/EN 60335-1 with CE marking for the Low Voltage and RoHS2 Directives. The series is compliant to EN 55032-B (radiated and conducted) and will meet EN 55024 immunity standards with an external varistor.
More information and product availability can be obtained on the TDK Product Center, or by calling 800-LAMBDA-4.
Security systems, building automation, professional household appliances, portable equipment and products requiring a separate standby voltage
Main features and benefits
- 90 - 305VAC input voltage
- Class II construction
- Wide temperature range, up to -40 to +80°C
- <0.3W off-load power consumption
