Harsh Environment and COTS DC-DC Converter Series Extended with 85W Models
San Diego, CA – February 2017 –
TDK Corporation announces the introduction of additional models to the TDK-Lambda HQA series of isolated DC-DC converters. Rated at 85W, the HQA85 has been qualified with methods consistent with MIL-STD-883 and MIL-STD-202, making it suitable for use in COTS and harsh environment industrial equipment. Initially available with 12V, 24V and 28V outputs, the encapsulated quarter bricks accept a wide range DC input of 9V to 40V, withstanding a 50V surge for 10 seconds.
With typical efficiencies of up to 90%, internal heating is minimized allowing the HQA85 converters to operate in high ambient temperatures of up to 115oC and a minimum of -40oC. No opto-couplers are used in the design for enhanced reliability at high temperatures and the switching frequency is fixed at 270 kHz for simplified noise filtering.

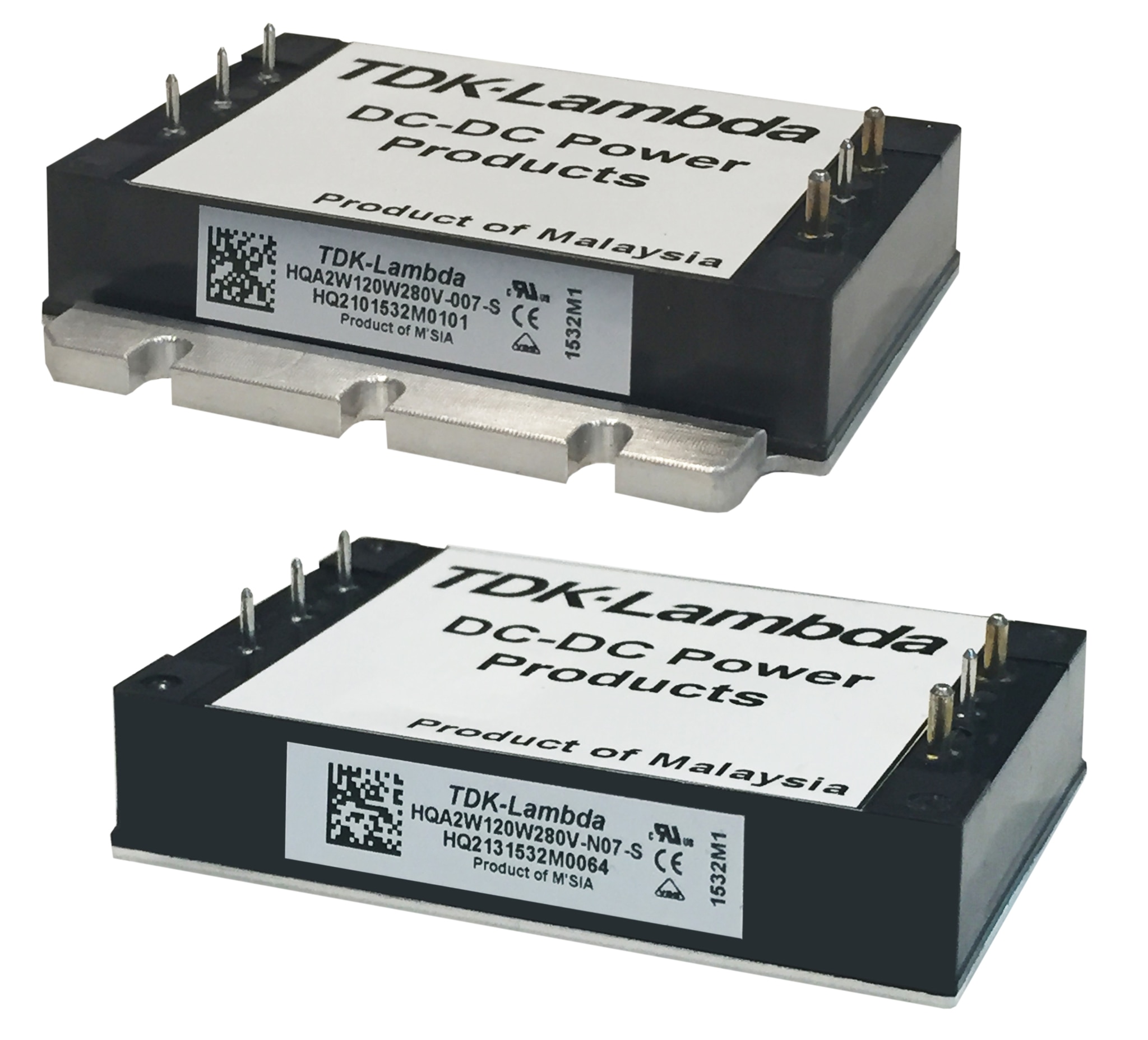

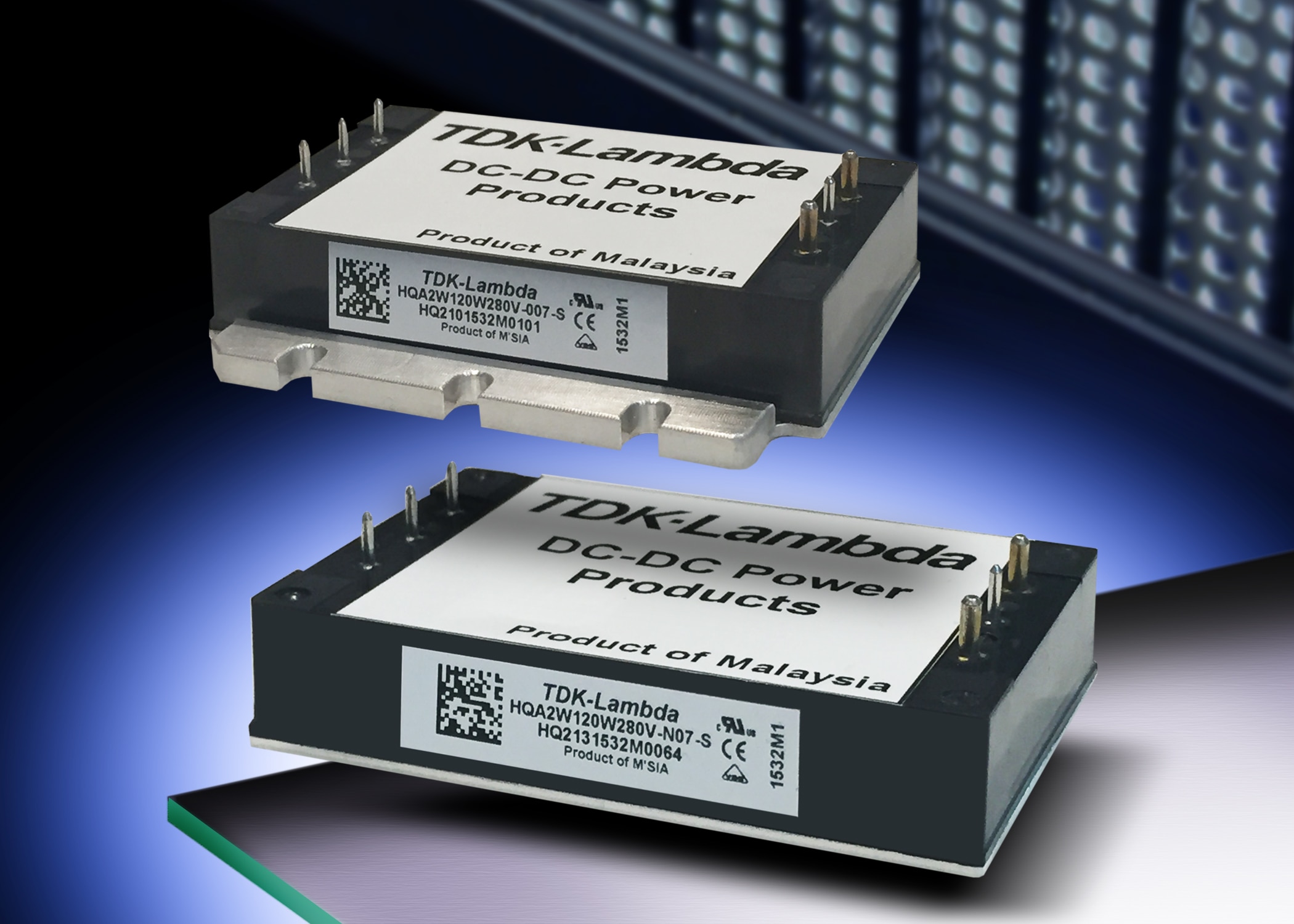

The converter pinout follows the industry standard five pin quarter brick footprint featuring negative logic remote on/off and +/- remote sense. Two package styles are offered; a flanged type measuring 2.39” x 2.2” x 0.5” and a non-flanged version measuring 2.39” x 1.54” x 0.5”.
Input-to-output and input to baseplate isolation is 2,250Vdc (basic insulation), and the converters are safety certified to UL/CSA/EN 60950-1, with the CE marking in accordance with the LV Directive and RoHS Directives.
More information and product availability can be obtained on the TDK Product Center, or by calling 800-LAMBDA-4.
Major applications
COTS (Commercial off the Shelf), vehicle, airborne, communications and harsh industrial.
Main features and benefits
- Industry standard ¼ brick pinout
- Efficiencies up to 90% at 24Vdc input
- Operating ambient temperatures up to 115°C
- No opto-couplers used

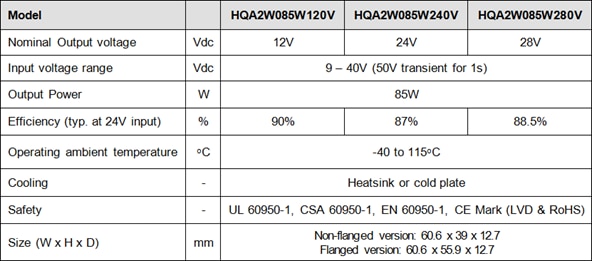

Major specifications
