Neptune, NJ – August, 2016 -

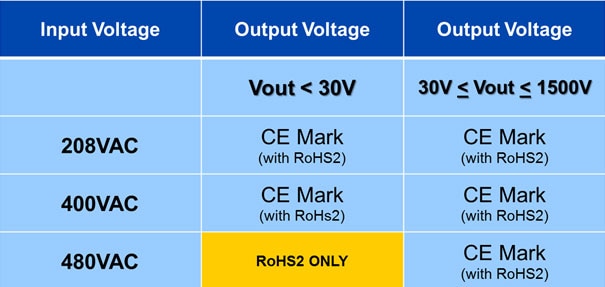

TDK Corporation announces that all models of the TDK-Lambda Genesys™ 3U AC/DC Programmable Power Supply Series are RoHS 2 compliant with most models bearing the CE Mark (as outlined in the Table below) along with a Declaration of Conformity (D-of-C), which can be found in the TDK-Lambda Genesys™ 3U User's Manuals.
Carrying a five-year warranty, the TDK-Lambda Genesys™ 3U AC/DC Programmable Power Supply Series models have the same front panel features and compact dimensions (3U (133mm) high and 19” (483mm) wide) with Output voltages ranging from 7.5V (@ 1000A) to 1500V (@ 10A).
CE marked in accordance with the Low Voltage Directive, the TDK-Lambda Genesys™ 3U AC/DC Programmable Power Supply Series conforms to Conducted and Radiated EMI in accordance with EN55011A and FCC Part 15J-A.
Safety agency approvals include UL/cUL 60950-1 and EN60950-1.
More information can be obtained at the following TDK-Lambda Americas website, https://www.us.lambda.tdk.com/products/programmable-power/genesys.html, or by calling 800-LAMBDA-4.
Main Features and Benefits
- Wide AC Input Voltage range for three-phase 208VAC, 400VAC and 480VAC Input.
- High Power Factor (0.88 for Vout < 600V; 0.93 for Vout > 600V).
- High Efficiency ( > 77% for Vout < 30V, > 88% for 30V < Vout < 600V, > 93.5% for Vout > 600V).
- Fast Up/Down Programming Response Time (100ms/50ms for Vout < 600V, 17ms / 20ms for Vout > 600V).
- Multi-functional Front Panel display: (Set Voltage/Current PREVIEW limits (Coarse and Fine), Set OVP/UVL limits (Coarse and Fine), Set Current FOLDback limit (Coarse and Fine), Set Advanced Parallel configuration, Go-to-Local, Set unit Address/Baud rate, Output ON/OFF, Safe/Auto Re-Start, Front Panel Lockout, Last Setting Memory.
- Built-In Protective functions (OVP, UVL, FOLD, OTP, AC-FAIL).
- Output Isolation to 600V for Vout < 600V; to 1500V for Vout > 600V.
- Single-Wire (Vout < 30V) and Two-Wire (Vout > 30V) “Basic” and “Advanced” Parallel current share for up to 40kW/60kW total Output power.
- Built-in RS-232/RS-485 Multi-Drop Digital Interface and J1 Remote Analog 5V/10V Program/Monitor Interface (Isolated to 600V for Vout < 600V; Isolated to 1500V for Vout > 600V).
- Optional LAN (LXI certified), GPIB (IEEE) and Isolated-Analog (5V/10V & 4-20mA) Programming interfaces.
- Rack-mount with provision for chassis slides; Zero-stacking for maximum power density.
- Cooling Fan speed control (for reduced audible noise and longer life): Vout > 30V.
- Light weight: < 97lbs (43kg) for Vout < 600V / < 70lbs (32kg) for Vout > 600V.
- Dimensions: 5.25”/133mm: Height-3U x 19.00”/483mm: Width x 22.85”/581mm: Length

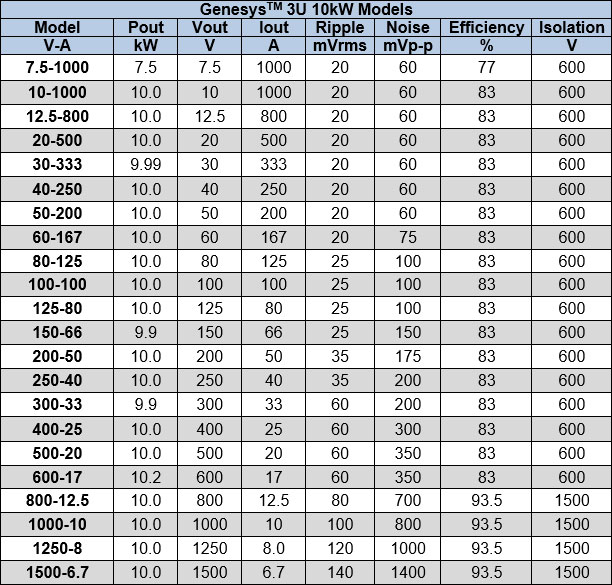

Major Specifications: (Genesys™ 3U 10kW models)

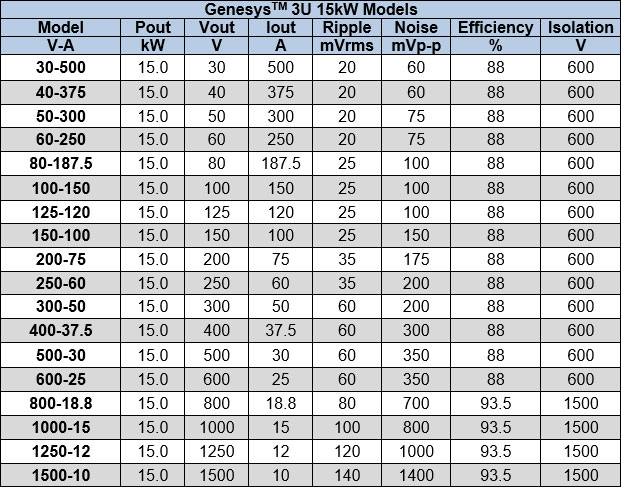

Major Specifications: (Genesys™ 3U 15kW models)
