PHV Series

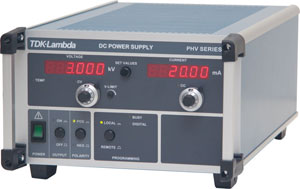

The PHV series offers exceptional performance and versatility with full local controls and features output voltages ranging from 0-125V to 0-300kV, at power levels from 14W to 15kW. A broad range of optional analog and/or digital remote programming interfaces are available, along with available ultra low ripple and high stability.

Features:

  • High efficiency > 90%
  • Ultra low 0.01% peak-peak output ripple
  • Protected against short circuits and arcs
  • CE Mark, EN61010 safety compliant
  • 19" rack mounted
  • Three year warranty

Applications:

  • Photomultipliers
  • Insulation Test
  • Electrostatics
  • Ion Sources
  • Mass Spectrometry
  • Nuclear Fusion Research
  • Particle Accelerators
View pdf
datasheet
Model Number Rated Power (Watts) Output Voltage Rating (V) Output Current Rating (mA) Ripple mV p-p (DC- 10MHz) Width (inches) Height (U) Depth (inches) Weight (lbs)
PDF PHV0.65F20-1P115 14 650 20 83 8.75 3 14 9
PDF PHV1.25F10-1P115 14 1250 10 113 8.75 3 14 9
PDF PHV2F6-1P115 14 2000 6 150 8.75 3 14 9
PDF PHV3.5P4-1P115 14 3500 4 400 8.75 3 14 7
PDF PHV6.5P2-1P115 14 6500 2 700 8.75 3 14 7
PDF PHV12.5P1-1P115 14 12500 1 1300 8.75 3 14 9
PDF PHV20P0.6-1P115 14 20000 0.6 2050 8.75 3 14 9
PDF PHV0.125F250-1P115 35 125 250 56 8.75 3 14 9
PDF PHV0.2F150-1P115 35 200 150 60 8.75 3 14 9
PDF PHV0.35F100-1P115 35 350 100 68 8.75 3 14 9
PDF PHV0.65F50-1P115 35 650 50 83 8.75 3 14 9
PDF PHV1.25F25-1P115 35 1250 25 113 8.75 3 14 9
PDF PHV2F15-1P115 35 2000 15 150 8.75 3 14 9
PDF PHV3.5P10-1P115 35 3500 10 400 8.75 3 14 9
PDF PHV6.5P5-1P115 35 6500 5 700 8.75 3 14 9
PDF PHV12.5P2.5-1P115 35 12500 2.5 1300 8.75 3 14 11
PDF PHV20P1.5-1P115 35 20000 1.5 2050 8.75 3 14 11
PDF PHV35P1-1P115 35 35000 1 3550 17.5 3 18 22
PDF PHV65P0.5-1P115 35 65000 0.5 6550 17.5 3 18 38
PDF PHV0.125F1000-1P115 140 125 1000 56 8.75 3 14 11
PDF PHV0.2F600-1P115 140 200 600 60 8.75 3 14 11
PDF PHV0.35F400-1P115 140 350 400 68 8.75 3 14 11
PDF PHV0.65F200-1P115 140 650 200 83 8.75 3 14 11
PDF PHV1.25F100-1P115 140 1250 100 113 8.75 3 14 11
PDF PHV2F60-1P115 140 2000 60 150 8.75 3 14 11
PDF PHV3.5P40-1P115 140 3500 40 400 8.75 3 14 14
PDF PHV6.5P20-1P115 140 6500 20 700 8.75 3 14 14
PDF PHV12.5P10-1P115 140 12500 10 1300 8.75 3 14 16
PDF PHV20P6-1P115 140 20000 6 2050 8.75 3 14 16
PDF PHV35P4-1P115 140 35000 4 3550 17.5 3 18 27
PDF PHV65P2-1P115 140 65000 2 6550 17.5 3 18 47
PDF PHV100P1-1P115 140 100000 1 10050 17.5 5 22 110
PDF PHV150P0.5-1P115 140 150000 0.5 15050 17.5 10 30 242
PDF PHV200P0.75-1P115 140 200000 0.75 20050 17.5 12 30 352
PDF PHV300P0.3-1P115 140 300000 0.3 30050 24 29 30 396
PDF PHV0.125F2500-1P115 350 125 2500 56 8.75 3 14 14
PDF PHV0.2F1500-1P115 350 200 1500 60 8.75 3 14 14
PDF PHV0.35F1000-1P115 350 350 1000 68 8.75 3 14 14
PDF PHV0.65F500-1P115 350 650 500 83 8.75 3 14 14
PDF PHV1.25F250-1P115 350 1250 250 113 8.75 3 14 14
PDF PHV2F150-1P115 350 2000 150 150 8.75 3 14 14
PDF PHV3.5P100-1P115 350 3500 100 400 8.75 3 18 16
PDF PHV6.5P50-1P115 350 6500 50 700 8.75 3 18 16
PDF PHV12.5P25-1P115 350 12500 25 1300 17.5 3 18 25
PDF PHV20P15-1P115 350 20000 15 2050 17.5 3 18 25
PDF PHV35P10-1P115 350 35000 10 3550 17.5 3 18 38
PDF PHV65P5-1P115 350 65000 5 6550 17.5 6 18 99
PDF PHV100P3-1P115 350 100000 3 10050 17.5 5 22 121
PDF PHV150P2-1P115 350 150000 2 15050 17.5 10 30 286
PDF PHV200P1.5-1P115 350 200000 1.5 20050 24 29 24 396
PDF PHV300P1-1P115 350 300000 1 30050 24 38 24 440
PDF PHV0.125F5000-1P115 700 125 5000 225 17.5 3 14 20
PDF PHV0.2F3000-1P115 700 200 3000 240 17.5 3 14 20
PDF PHV0.35F2000-1P115 700 350 2000 270 17.5 3 14 20
PDF PHV0.65F1000-1P115 700 650 1000 330 17.5 3 14 20
PDF PHV1.25F500-1P115 700 1250 500 450 17.5 3 14 20
PDF PHV2F300-1P115 700 2000 300 600 17.5 3 14 20
PDF PHV3.5P200-1P115 700 3500 200 400 17.5 3 14 25
PDF PHV6.5P100-1P115 700 6500 100 700 17.5 3 14 25
PDF PHV12.5P50-1P115 700 12500 50 1300 17.5 3 22 36
PDF PHV20P30-1P115 700 20000 30 2050 17.5 3 22 36
PDF PHV35P20-1P115 700 35000 20 3550 17.5 3 22 44
PDF PHV65P10-1P115 700 65000 10 6550 17.5 8 22 121
PDF PHV100P6-1P115 700 100000 6 10050 17.5 8 22 161
PDF PHV150P4-1P115 700 150000 4 15050 17.5 10 30 308
PDF PHV200P3-1P115 700 200000 3 20050 24 38 32 440
PDF PHV300P2-1P115 700 300000 2 30050 24 38 32 484
PDF PHV0.125F10000-1P115 1400 125 10000 225 17.5 3 18 27
PDF PHV0.2F6000-1P115 1400 200 6000 240 17.5 3 18 27
PDF PHV0.35F4000-1P115 1400 350 4000 270 17.5 3 18 27
PDF PHV0.65F2000-1P115 1400 650 2000 330 17.5 3 18 27
PDF PHV1.25F1000-1P115 1400 1250 1000 450 17.5 3 18 27
PDF PHV2F600-1P11 1400 2000 600 600 17.5 3 18 27
PDF PHV3.5P400-1P115 1400 3500 400 400 17.5 3 18 29
PDF PHV6.5P200-1P115 1400 6500 200 700 17.5 3 18 29
PDF PHV12.5P100-1P115 1400 12500 100 1300 17.5 3 26 47
PDF PHV20P60-1P115 1400 20000 60 2050 17.5 3 26 47
PDF PHV35P40-1P115 1400 35000 40 3550 17.5 3 26 55
PDF PHV65P20-1P115 1400 65000 20 6550 17.5 9 22 154
PDF PHV100P12-1P115 1400 100000 12 10050 17.5 9 22 198
PDF PHV150P8-1P115 1400 150000 8 15050 17.5 12 30 352
PDF PHV200P6-1P115 1400 200000 6 20050 24 38 32 484
PDF PHV300P4-1P115 1400 300000 4 30050 24 38 32 550
PDF PHV0.125F20000-3P208 2800 125 20000 225 17.5 3 22 51
PDF PHV0.2F12000-3P208 2800 200 12000 240 17.5 3 22 51
PDF PHV0.35F8000-3P208 2800 350 8000 270 17.5 3 22 51
PDF PHV0.65F4000-3P208 2800 650 4000 330 17.5 3 22 51
PDF PHV1.25F2000-3P208 2800 1250 2000 450 17.5 3 22 51
PDF PHV2F1200-3P208 2800 2000 1200 600 17.5 3 22 51
PDF PHV3.5P800-3P208 2800 3500 800 400 17.5 3 22 55
PDF PHV6.5P400-3P208 2800 6500 400 700 17.5 3 26 55
PDF PHV12.5P200-3P208 2800 12500 200 1300 17.5 6 22 77
PDF PHV20P120-3P208 2800 20000 120 2050 17.5 6 26 77
PDF PHV35P80-3P208 2800 35000 80 3550 17.5 6 26 99
PDF PHV65P40-3P208 2800 65000 40 6550 17.5 9 22 176
PDF PHV20P200-3P208 4200 20000 200 2050 17.5 6 26 99
PDF PHV35P120-3P208 4200 35000 120 3550 17.5 7 26 110
PDF PHV0.125F40000-3P208 5000 125 40000 225 17.5 6 26 88
PDF PHV0.2F25000-3P208 5000 200 25000 240 17.5 6 26 88
PDF PHV0.35F14000-3P208 5000 350 14000 270 17.5 6 26 88
PDF PHV0.65F7000-3P208 5000 650 7000 330 17.5 6 26 88
PDF PHV1.25F4000-3P208 5000 1250 4000 450 17.5 6 26 88
PDF PHV2F2500-3P208 5000 2000 2500 600 17.5 6 26 88
PDF PHV3.5P1500-3P208 5000 3500 1500 400 17.5 6 26 88
PDF PHV6.5P750-3P208 5000 6500 750 700 17.5 6 26 88
PDF PHV12.5P400-3P208 5000 12500 400 1300 17.5 6 26 88
PDF PHV0.125F80000-3P208 10000 125 80000 225 17.5 13 26 165
PDF PHV0.2F50000-3P208 10000 200 50000 240 17.5 9 26 165
PDF PHV0.35F28000-3P208 10000 350 28000 270 17.5 9 26 165
PDF PHV0.65F15000-3P208 10000 650 15000 330 17.5 9 26 165
PDF PHV1.25F8000-3P208 10000 1250 8000 450 17.5 9 26 165
PDF PHV2F5000-3P208 10000 2000 5000 600 17.5 9 26 165
PDF PHV3.5P3000-3P208 10000 3500 3000 400 17.5 9 26 165
PDF PHV6.5P1500-3P208 10000 6500 1500 700 17.5 9 26 165
PDF PHV12.5P800-3P208 10000 12500 800 1300 17.5 9 26 165
PDF PHV0.125F120000-3P208 15000 125 120000 225 17.5 12 26 242
PDF PHV0.2F75000-3P208 15000 200 75000 240 17.5 12 26 242
PDF PHV0.35F42000-3P208 15000 350 42000 270 17.5 12 26 242
PDF PHV0.65F22500-3P208 15000 650 22500 330 17.5 12 26 242
PDF PHV1.25F12000-3P208 15000 1250 12000 450 17.5 12 26 242
PDF PHV2F7000-3P208 15000 2000 7000 600 17.5 12 26 242
PDF PHV3.5P4500-3P208 15000 3500 4500 400 17.5 12 26 242
PDF PHV6.5P2300-3P208 15000 6500 2300 700 17.5 12 26 242
PDF PHV12.5P1200-3P208 15000 12500 1200 1300 17.5 12 26 242
